Double Deck Trailers

Maximize Freight Efficiency – Reduce Costs – Increase Profitability

About Double Deck Trailers

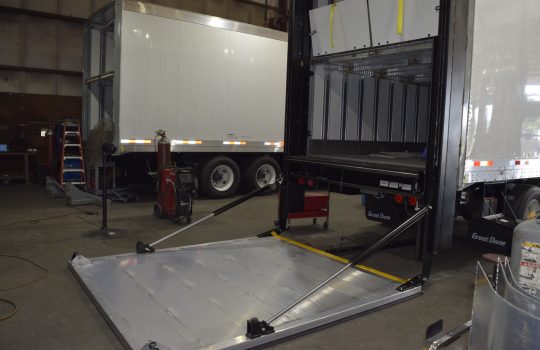

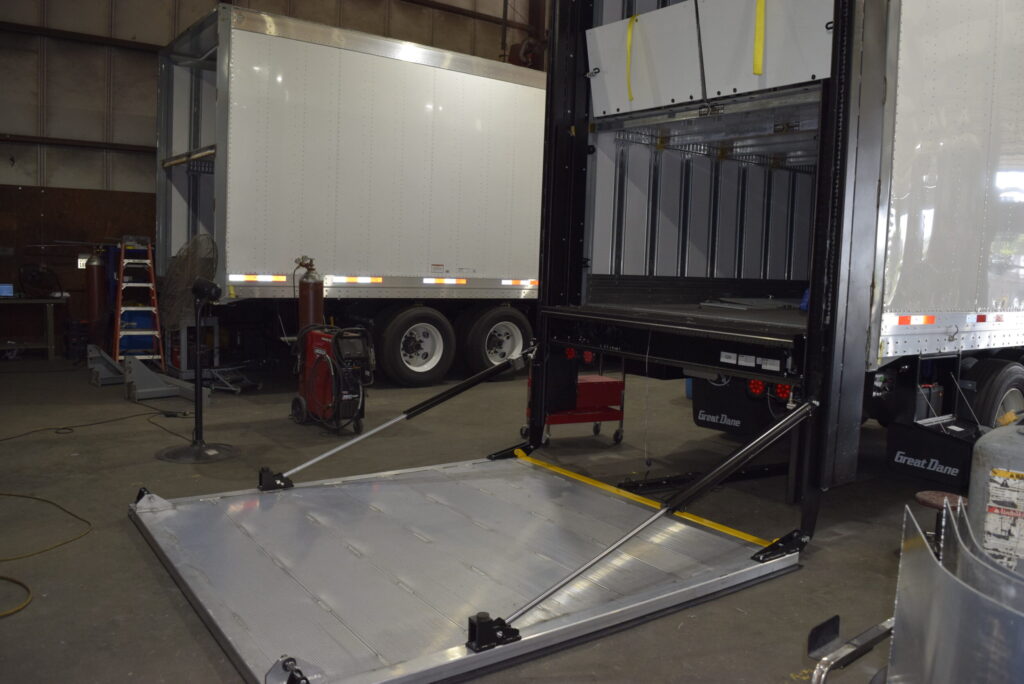

Matthews Motors offers the Double Deck Trailer System — an advanced trailer modification that instantly doubles cargo capacity for non-stackable freight. Ideal for logistics, automotive, retail, and packaging industries, our system enhances efficiency, reduces costs, and improves safety on every load.

Second-level folding deck system for maximum space utilization
Integrated liftgate platform for safer, faster loading
Optional nose cone for extra cargo space
Belly box storage for spare parts and decking components
Ideal for rolling stock, electronics, paper products, and retail displays
Customizable modular design to suit any fleet requirements

Great Dane Dry Van Trailers
Vanguard Dry Van Trailers

Double Deck Trailer Products

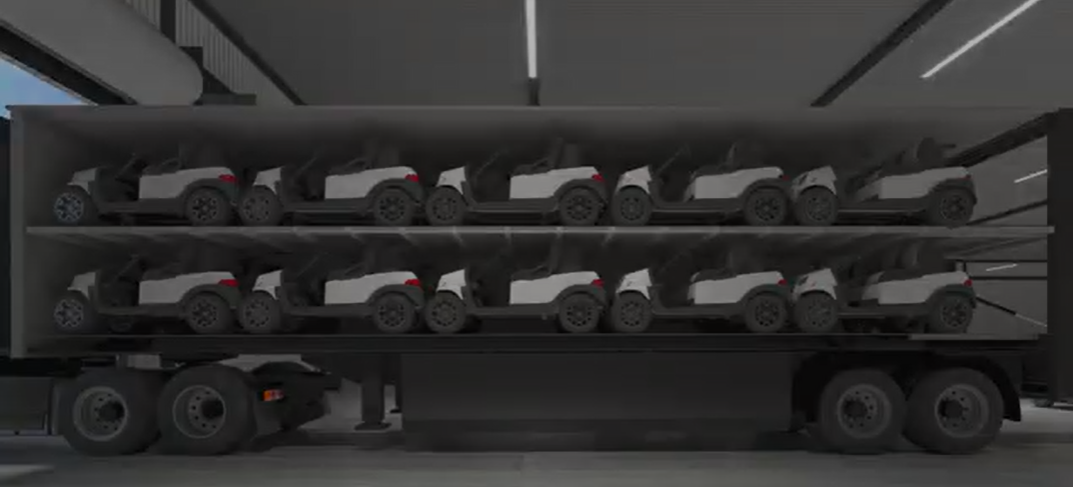

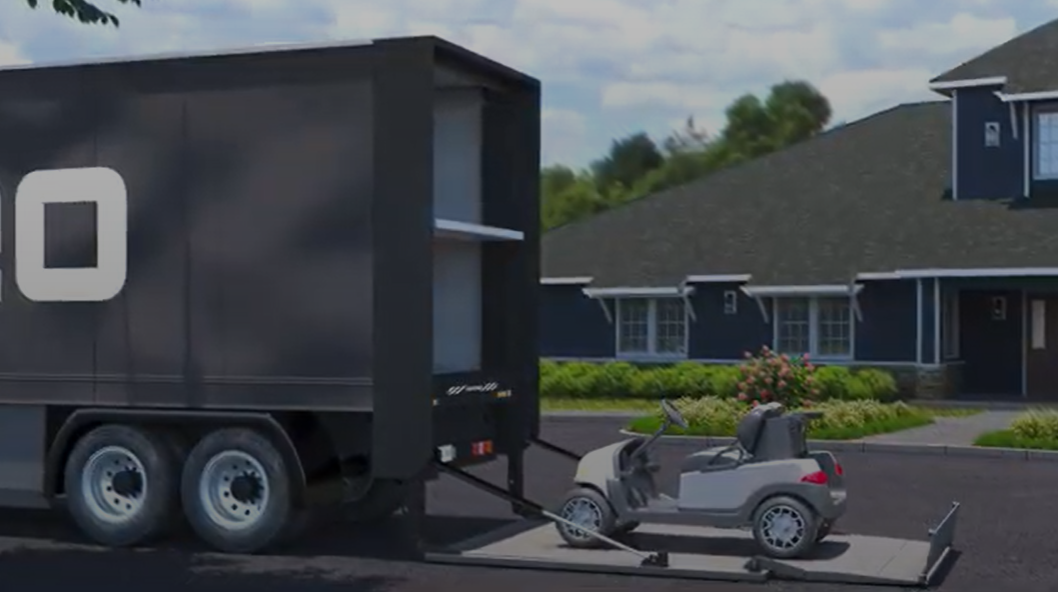

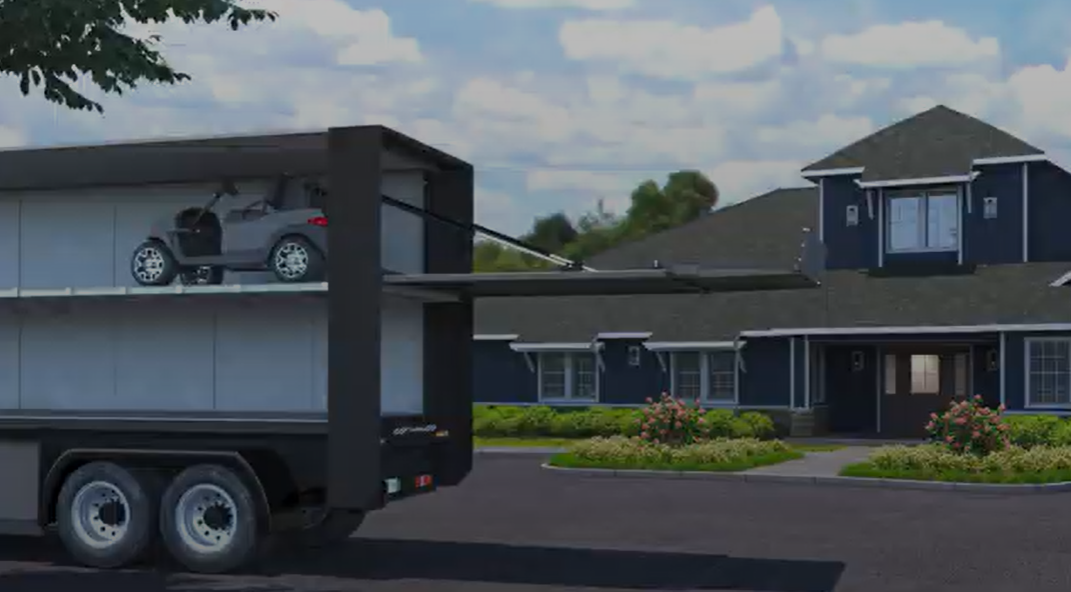

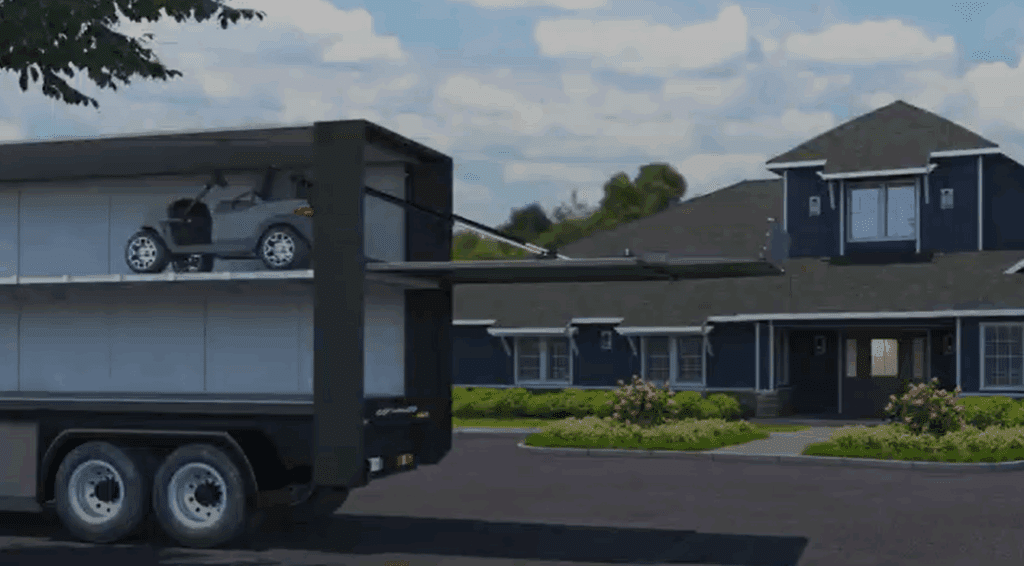

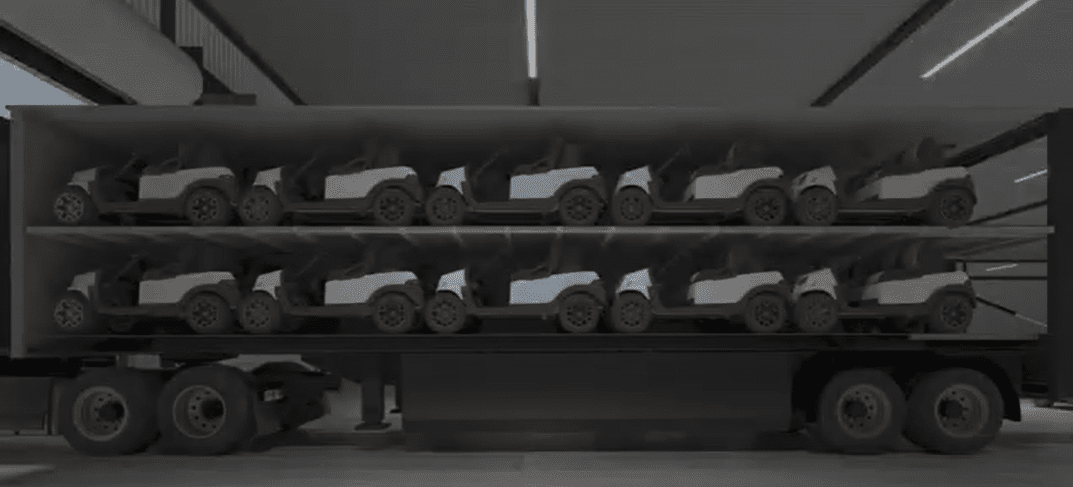

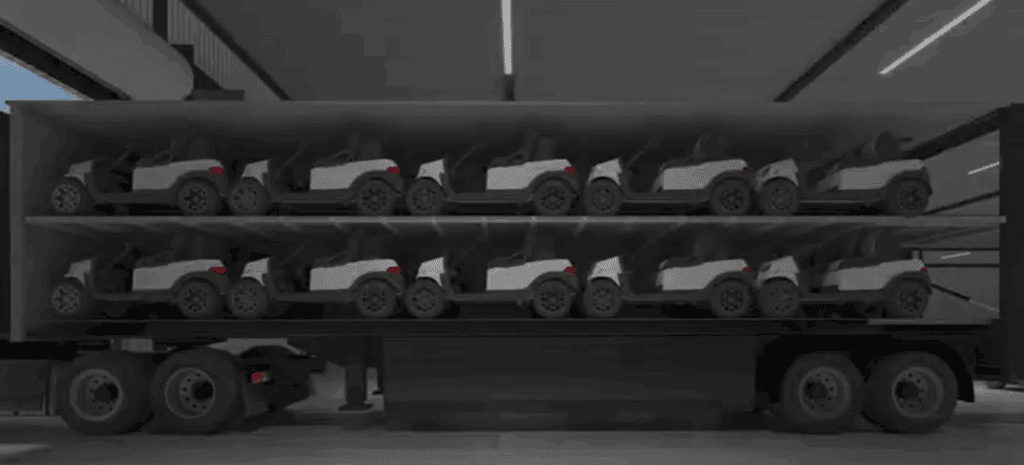

Double Deck Golf Cart Hauler

The Double Deck Golf Cart & Rolling Stock Hauler is purpose-built to maximize transport efficiency for golf carts, UTVs, ATVs, and other light rolling stock. Featuring a secure second-level deck with fold-up storage capability, integrated liftgate system, and customizable configurations, it’s ideal for dealership deliveries and fleet operators seeking to double cargo capacity without expanding fleet size.

Folding second-level deck system
Integrated column liftgate platform
Deck height clearance: 53″ top / 53 ⅝″ bottom
Nose cone extension for added space
Belly box storage for spare parts and decking
Durable steel frame or aluminum options

Lift capacities: 1000 kg, 1500 kg, 2000 kg
Remote or foot controls for liftgate
Optional nose cone (+16 ¼″)
Optional belly box storage (20′ x 8.5′ x 2.5′)
Side wrap-around rear door option

Deck height clearances: 53″ (top), 53 ⅝″ (bottom)
Liftgate capacity: up to 4,409 lbs (2000 kg)
Trailer inside dimensions: 52’ 6 1/8″ L x 88 ⅜″ W x 109 ¾″ H
Outside height: 9′ 4″
Liftgate platform: 14.42′ L x 92″ W
Chassis: Great Dane, Vanguard
Compatible power supply: 24V

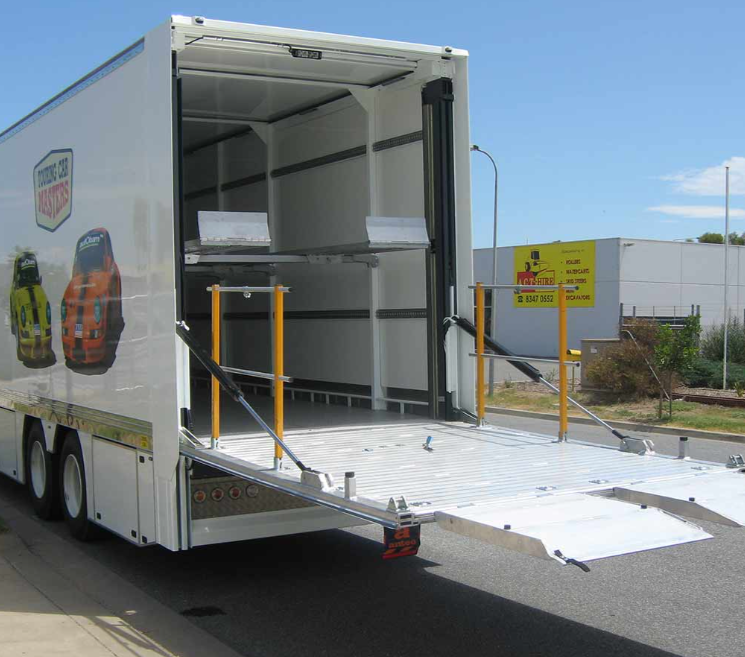

Double Deck Equipment Hauler

The Double Deck Equipment Transport system is designed for light equipment hauling, allowing operators to load outdoor power equipment, small utility vehicles, and motorsport products efficiently. The adjustable double-deck system reduces idle time and protects valuable equipment during transit.

Heavy-duty column liftgate with foldable second deck
Secure loading of power equipment and UTVs
Adjustable loading height with level ride
Full underbody storage options
Fast loading/unloading with optional foot controls

Liftgate platform extensions
Foldable safety gates
Optional nose cone
Belly box storage
Choice of Great Dane or Vanguard trailer platforms

Liftgate weight capacities: up to 2000 kg
Platform length: 14.42′
Trailer inside height: 109 ¾″
Overall trailer length: 52’ 6 ⅛″
Belly box dimensions: 20′ x 8.5′ x 2.5′
Power source: 24V electrical system

Double Deck Freight Hauler

The Double Deck Retail & General Freight Hauler is optimized for non-stackable cargo like retail goods, electronics, and paper products. It offers shippers the flexibility to maximize load capacity while reducing transit damage, fuel costs, and overall shipping expenses.

Second-level deck folds away for full vertical access
Integrated liftgate eliminates dock dependency
Safer loading procedures with controlled lift platforms
Optional add-ons for storage and load capacity extension

Optional liftgate controls (remote/foot)
Belly box storage for deck components
Nose cone for extra cargo length
Side or rear wrap configurations

Cargo capacity: doubles load without increasing trailer count
Lift capacity: up to 4,409 lbs
Deck clearances: top 53″, bottom 53 ⅝″
Inside trailer volume: 52’ 6 1/8″ L x 88 ⅜″ W x 109 ¾″ H
Chassis: Great Dane, Vanguard

Customize Your Double Deck Trailers

Select deck configurations, lift capacities, nose cone extensions, and loading features to build a freight-optimized trailer tailored to your business.
