Double Deck Trailers

Double deck trailers maximize cargo capacity by utilizing two loading levels within a single trailer. Double deck freight trailers help fleets transport more products, vehicles, and equipment while reducing transportation costs. Double deck cargo trailers improve loading efficiency and support high-volume distribution operations.

Trucks

About Double Deck Trailers

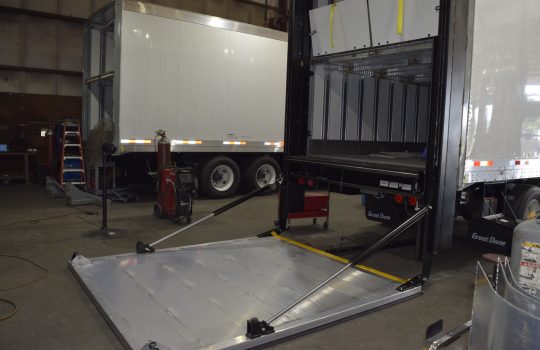

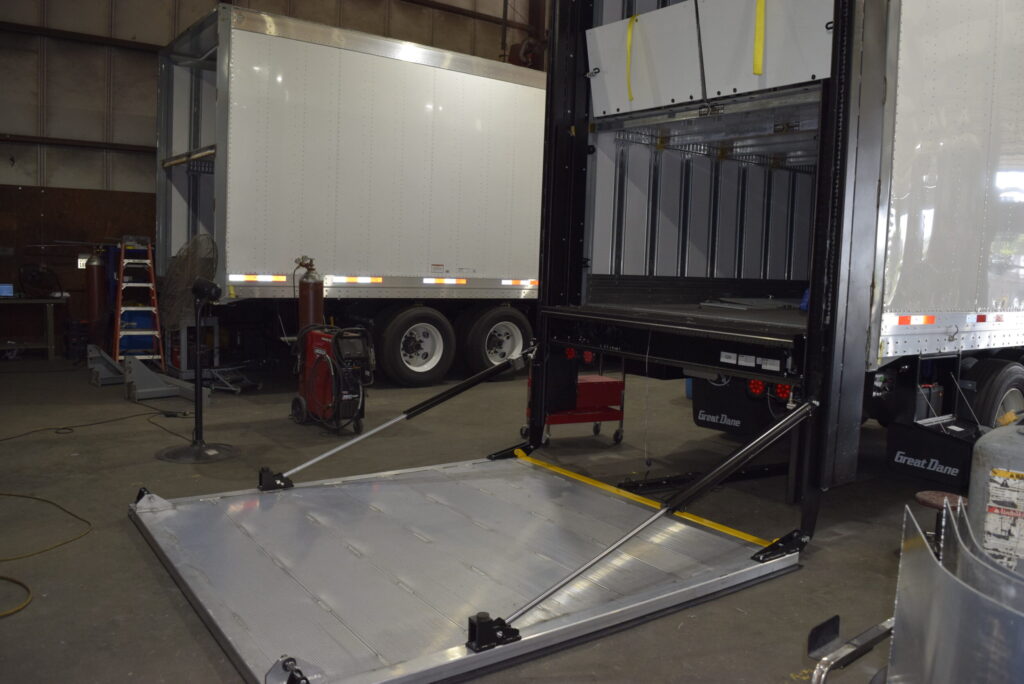

Double deck trailers are designed to maximize freight and vehicle carrying capacity by utilizing a second full-width loading deck. Commonly used for golf cart transportation, manufactured products, retail distribution, parcel delivery, and specialized freight applications, these trailers help fleets increase payload efficiency while reducing the number of trips required. Matthews Motors supplies double deck trailers configured with vertically folding second decks, full-width loading platforms, cargo securement systems, and fleet-ready specifications designed to improve transportation efficiency and reduce operating costs.

Full-width double deck design
Vertically folding upper deck
Increased payload capacity
Improved transportation efficiency
Reduced freight costs per unit
Vehicle and golf cart transportation
Cargo securement systems
Fleet-ready configurations
High-volume distribution applications
Durable commercial trailer construction

Great Dane Dry Van Trailers
Air Ride Suspension
Swing Rear Doors
Roll-Up Rear Doors
Logistic Track Systems
Cargo Securement Packages
Custom Fleet Specifications

Double Deck Trailer Products

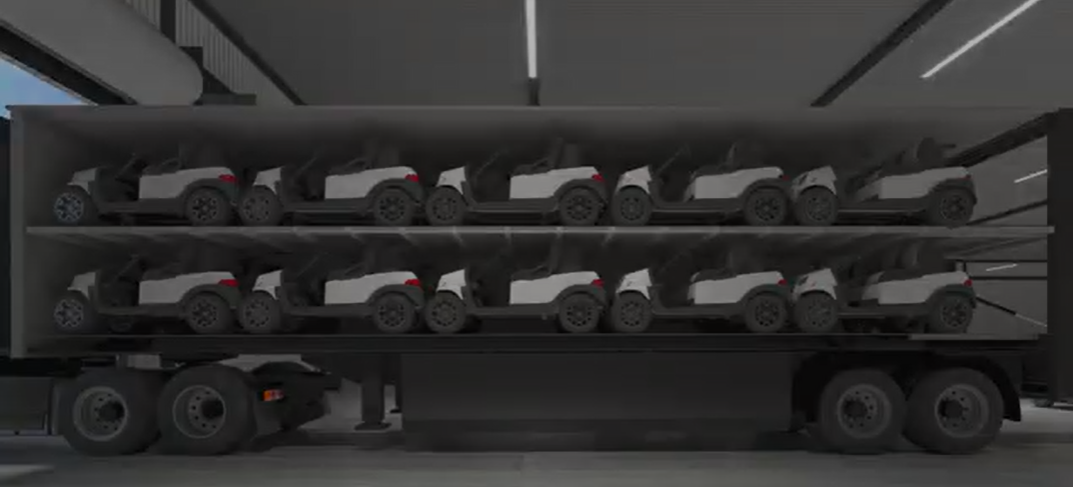

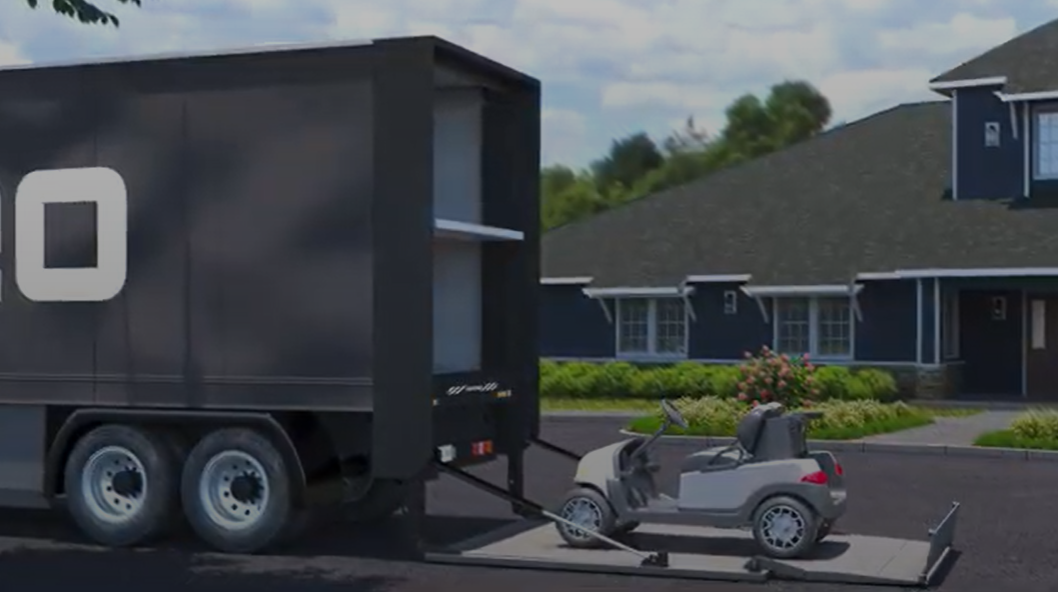

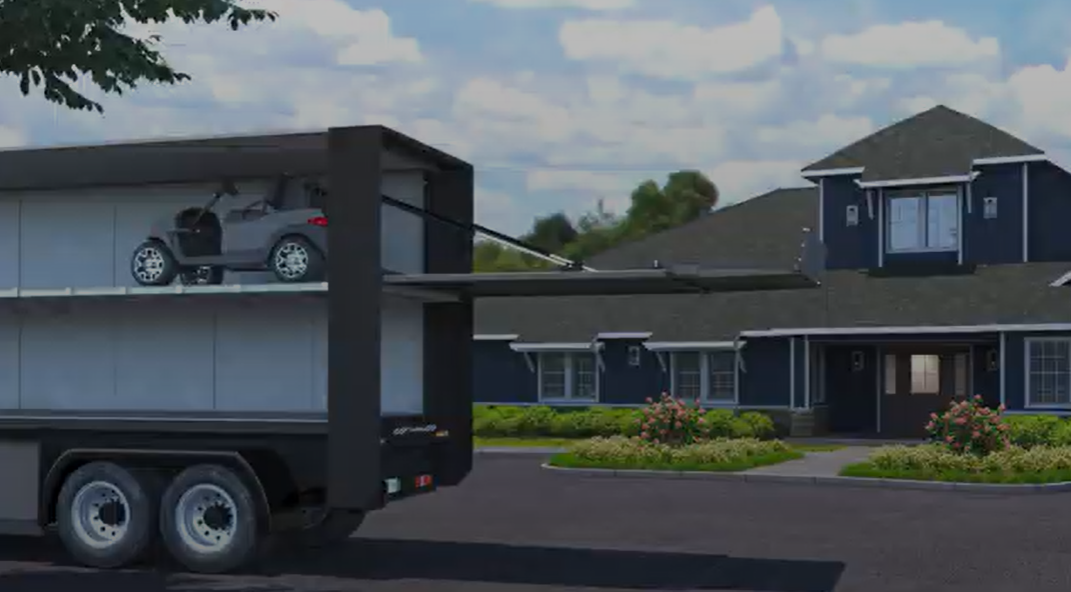

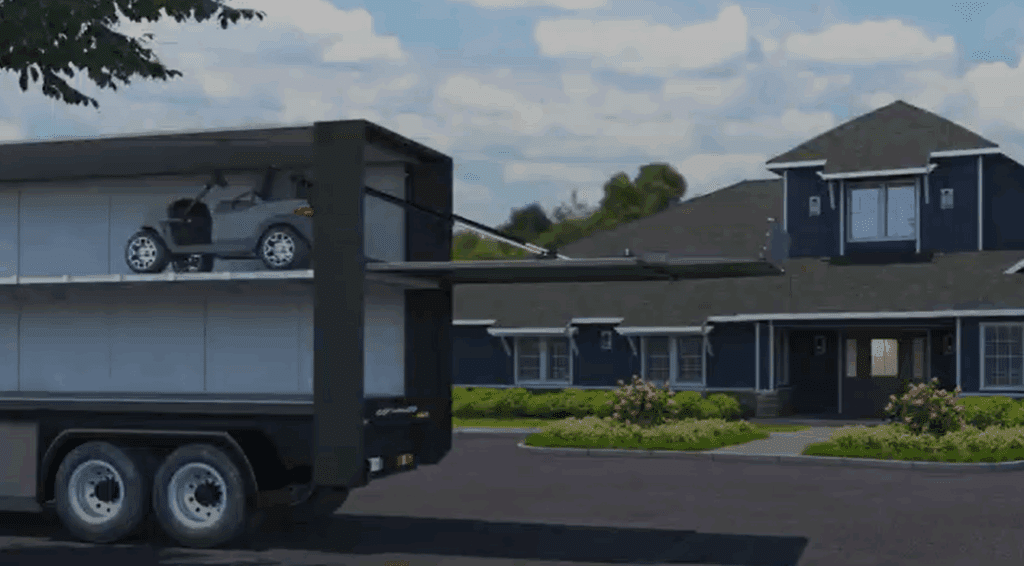

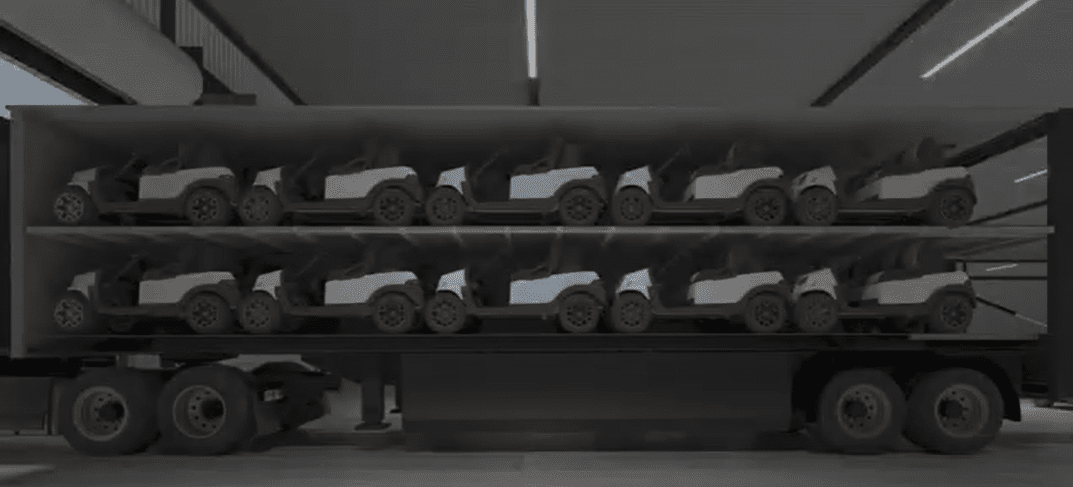

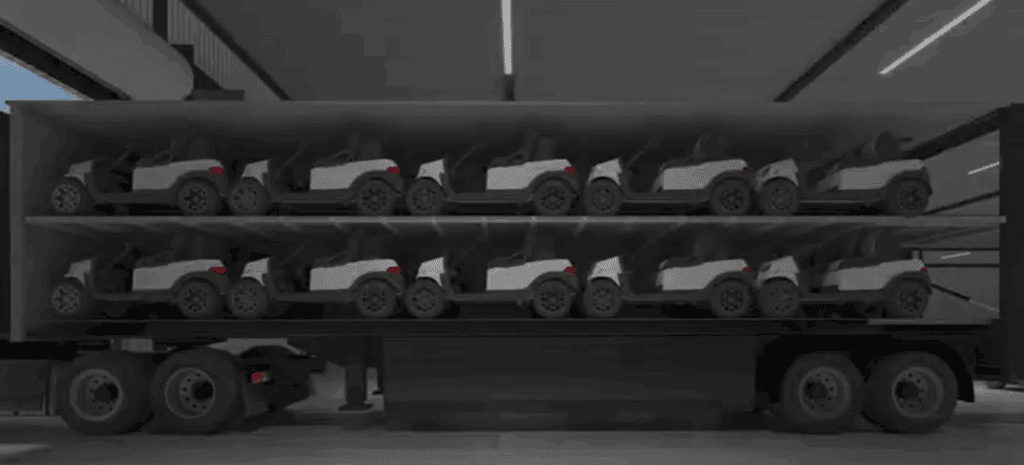

Double Deck Golf Cart Hauler

The Double Deck Golf Cart & Rolling Stock Hauler is purpose-built to maximize transport efficiency for golf carts, UTVs, ATVs, and other light rolling stock. Featuring a secure second-level deck with fold-up storage capability, integrated liftgate system, and customizable configurations, it’s ideal for dealership deliveries and fleet operators seeking to double cargo capacity without expanding fleet size.

Folding second-level deck system
Integrated column liftgate platform
Deck height clearance: 53″ top / 53 ⅝″ bottom
Nose cone extension for added space
Belly box storage for spare parts and decking
Durable steel frame or aluminum options

Lift capacities: 1000 kg, 1500 kg, 2000 kg
Remote or foot controls for liftgate
Optional nose cone (+16 ¼″)
Optional belly box storage (20′ x 8.5′ x 2.5′)
Side wrap-around rear door option

Deck height clearances: 53″ (top), 53 ⅝″ (bottom)
Liftgate capacity: up to 4,409 lbs (2000 kg)
Trailer inside dimensions: 52’ 6 1/8″ L x 88 ⅜″ W x 109 ¾″ H
Outside height: 9′ 4″
Liftgate platform: 14.42′ L x 92″ W
Chassis: Great Dane, Vanguard
Compatible power supply: 24V

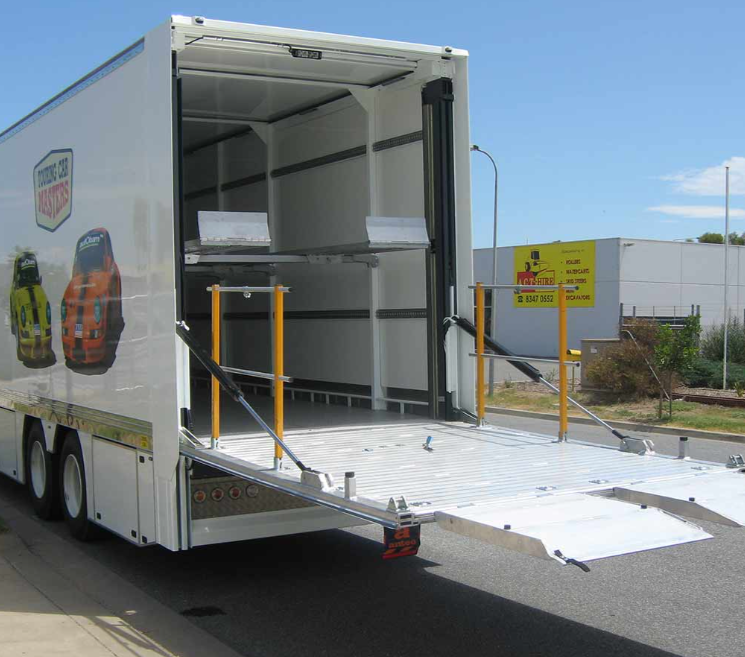

Double Deck Equipment Hauler

The Double Deck Equipment Transport system is designed for light equipment hauling, allowing operators to load outdoor power equipment, small utility vehicles, and motorsport products efficiently. The adjustable double-deck system reduces idle time and protects valuable equipment during transit.

Heavy-duty column liftgate with foldable second deck
Secure loading of power equipment and UTVs
Adjustable loading height with level ride
Full underbody storage options
Fast loading/unloading with optional foot controls

Liftgate platform extensions
Foldable safety gates
Optional nose cone
Belly box storage
Choice of Great Dane or Vanguard trailer platforms

Liftgate weight capacities: up to 2000 kg
Platform length: 14.42′
Trailer inside height: 109 ¾″
Overall trailer length: 52’ 6 ⅛″
Belly box dimensions: 20′ x 8.5′ x 2.5′
Power source: 24V electrical system

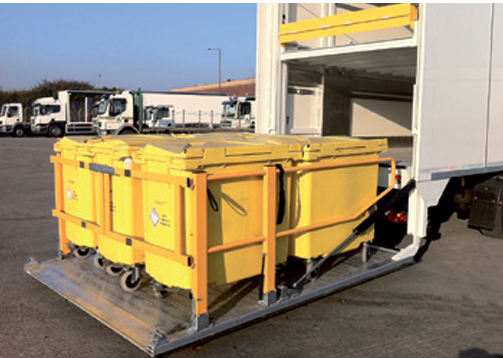

Double Deck Freight Hauler

The Double Deck Retail & General Freight Hauler is optimized for non-stackable cargo like retail goods, electronics, and paper products. It offers shippers the flexibility to maximize load capacity while reducing transit damage, fuel costs, and overall shipping expenses.

Second-level deck folds away for full vertical access
Integrated liftgate eliminates dock dependency
Safer loading procedures with controlled lift platforms
Optional add-ons for storage and load capacity extension

Optional liftgate controls (remote/foot)
Belly box storage for deck components
Nose cone for extra cargo length
Side or rear wrap configurations

Cargo capacity: doubles load without increasing trailer count
Lift capacity: up to 4,409 lbs
Deck clearances: top 53″, bottom 53 ⅝″
Inside trailer volume: 52’ 6 1/8″ L x 88 ⅜″ W x 109 ¾″ H
Chassis: Great Dane, Vanguard

Customize Your Double Deck Trailers

Customize your double deck trailer with deck spacing, cargo securement systems, air ride suspension, rear door configuration, logistics track systems, interior lighting, and fleet specifications that best fit your operation. Matthews Motors can configure double deck trailers for golf cart transportation, retail distribution, parcel delivery, manufacturing operations, vehicle transport, and specialized freight applications.
