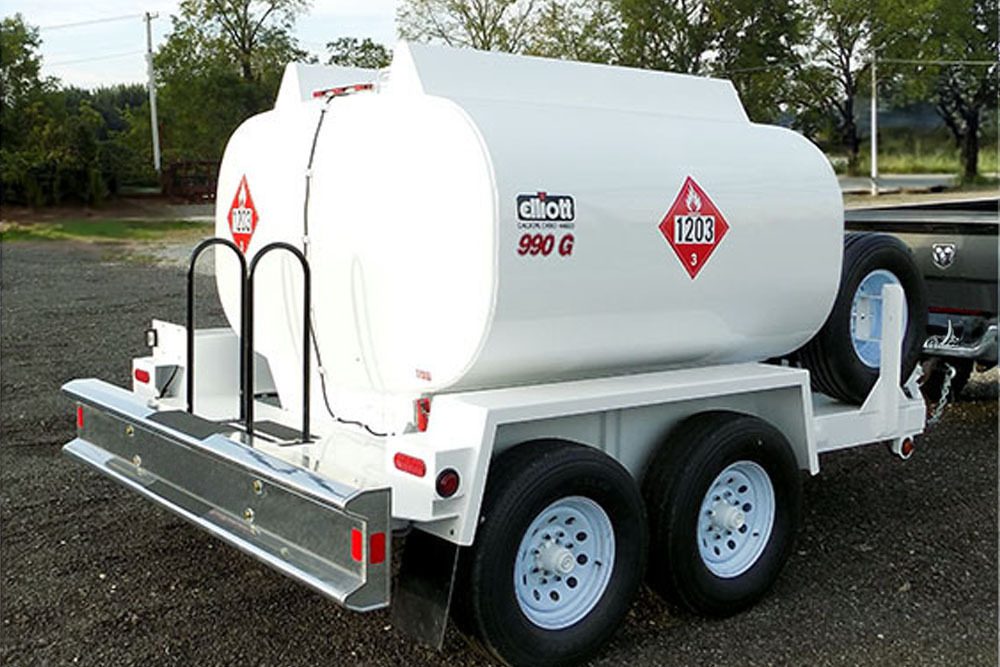

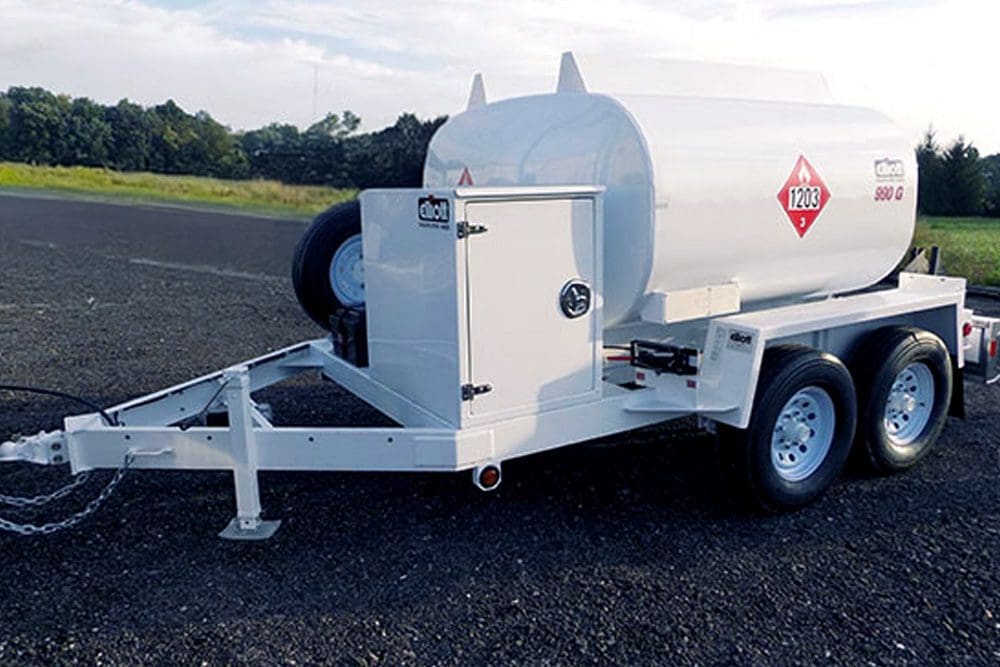

Elliott DOT 406 Trailer

DOT/TC 406 certified 990-gallon tandem-axle fuel trailer, designed for compliant fuel delivery on and off-road with optional DEF and lubrication systems.

Heavy-duty tandem-axle construction
DOT 406/TC 406 certified fuel tank
12V DC or air-powered fuel pump systems
Optional onboard air compressor
DEF, grease, and oil dispensing options

DEF dispensing system
Grease and oil hose reels
Solar charger power option
Onboard air compressor setup

Fuel capacity: 990 gallons
Certification: DOT 406 / TC 406 compliant
Pump system: 12V DC or air-powered pump with solar option
Construction: Military-grade tandem axle chassis

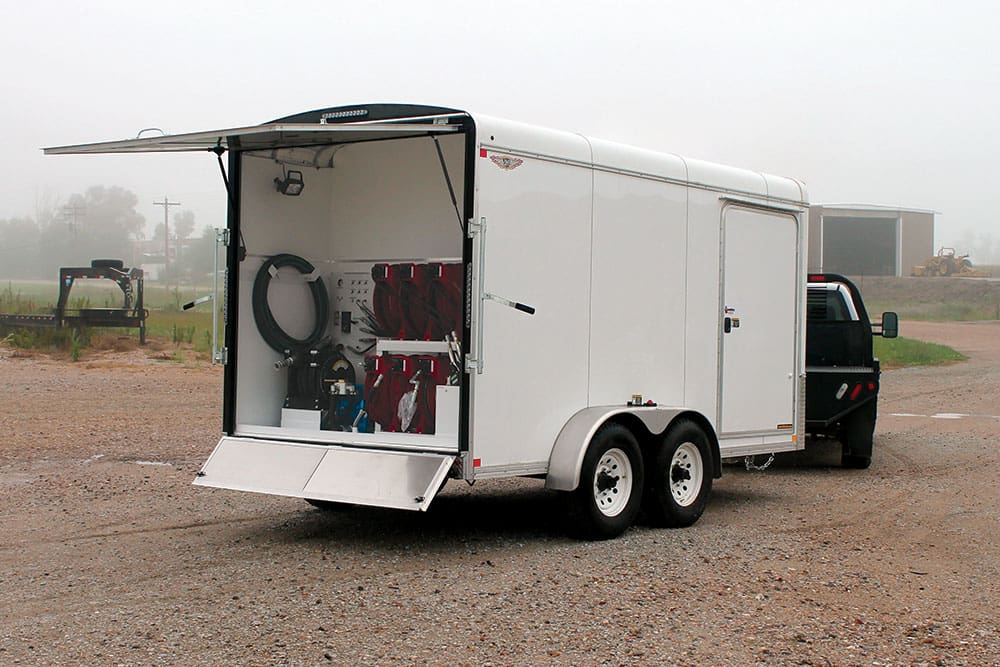

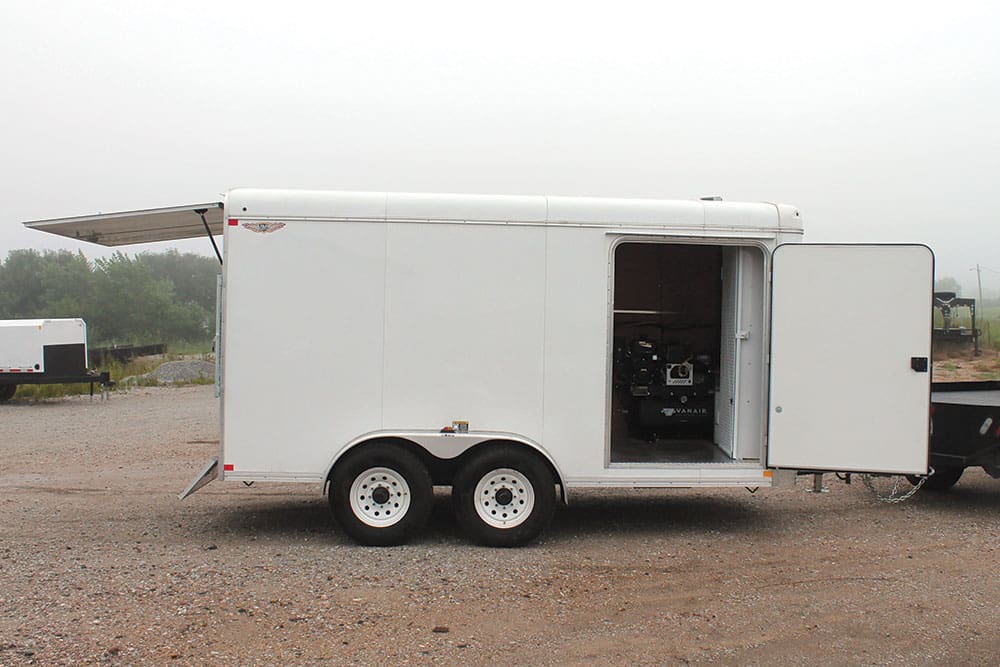

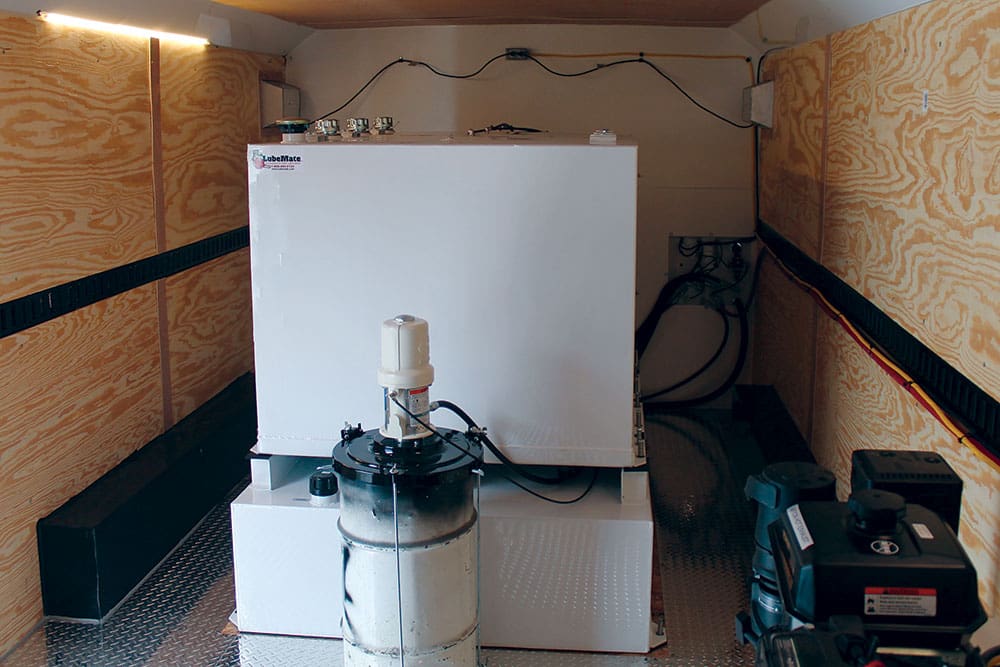

LubeMate® Enclosed Trailer

Secure, insulated enclosed lube trailer with integrated power systems, optimized for remote preventative maintenance services.

8′×16′ insulated enclosed trailer
Partitioned reel and tank sections
LED interior and exterior lighting
ATP rock guard and insulated walls

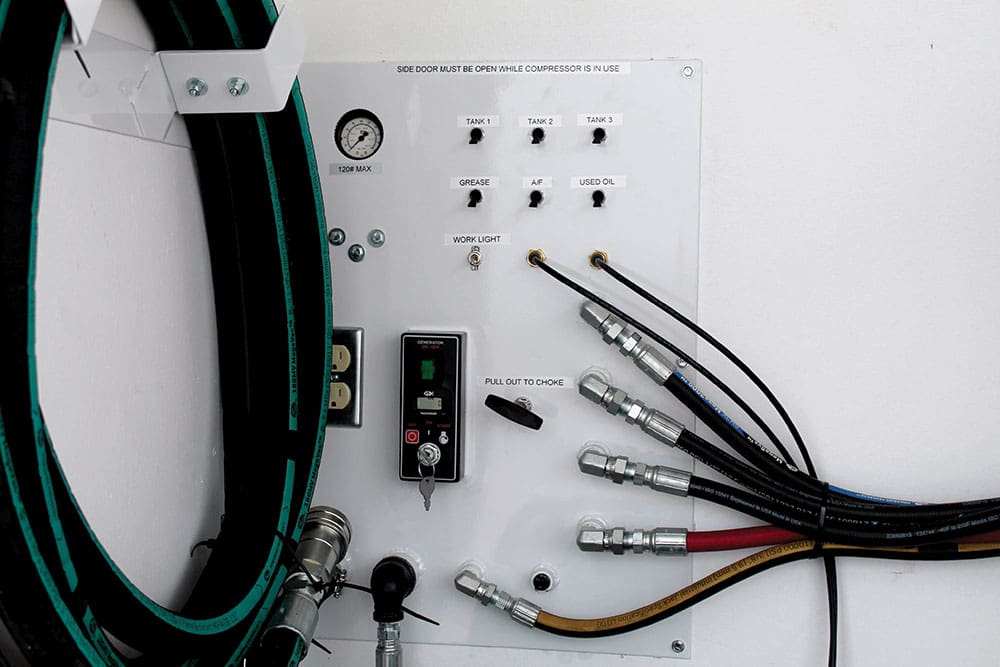

Vanair contractor power unit included

E-track storage system
Awning-style doors
Work lighting packages
Additional storage and custom tank layouts

Tank configuration: 3×100 gal fresh oil, 100 gal antifreeze, 200 gal waste oil, 120 lb grease
Power unit: 14 hp engine, 5,000 W generator, 20 cfm compressor, 30 gal air tank
Trailer dimensions: 8′×16′ with torsion axles
Axles: 7,000 lb torsion axles

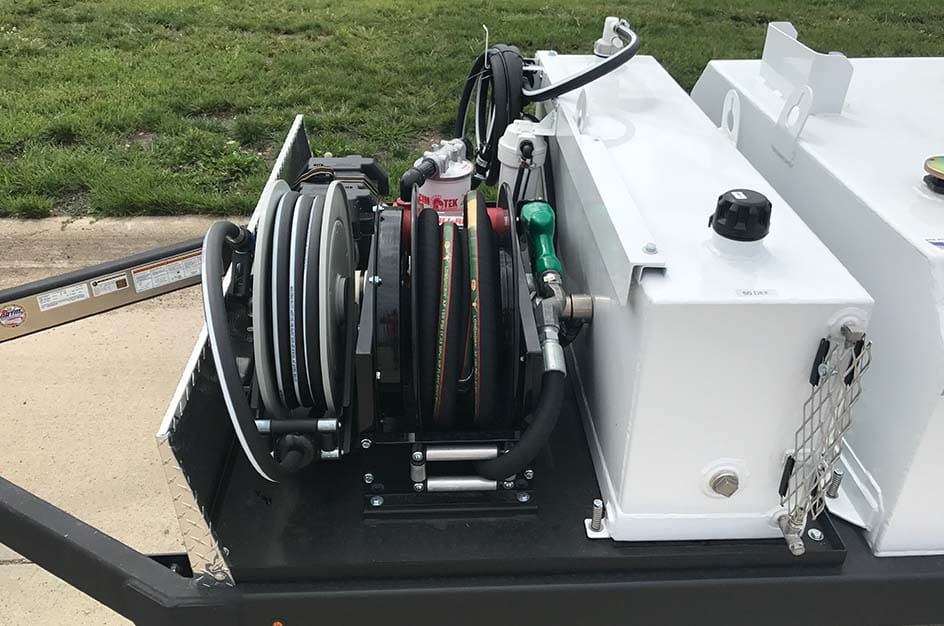

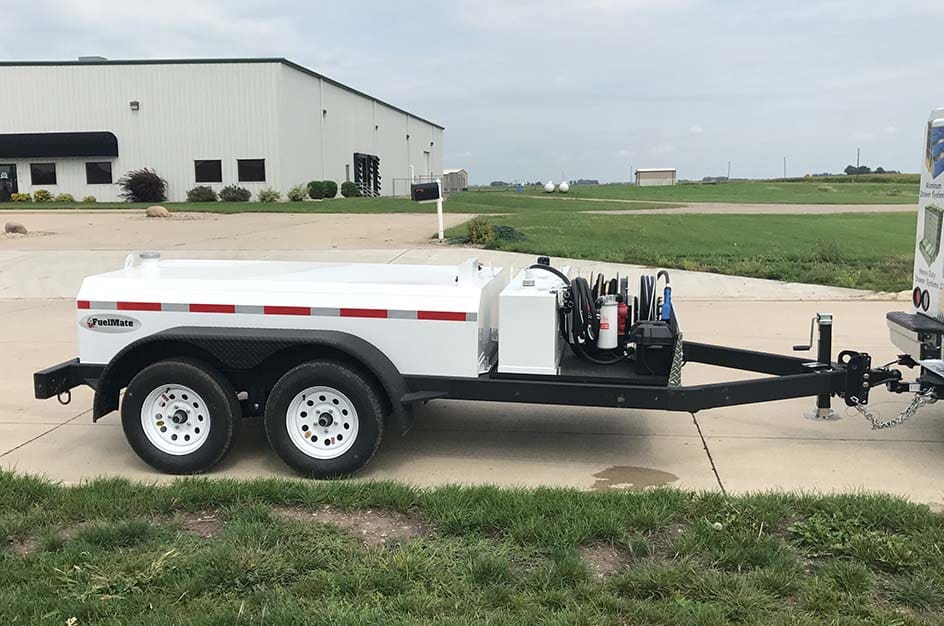

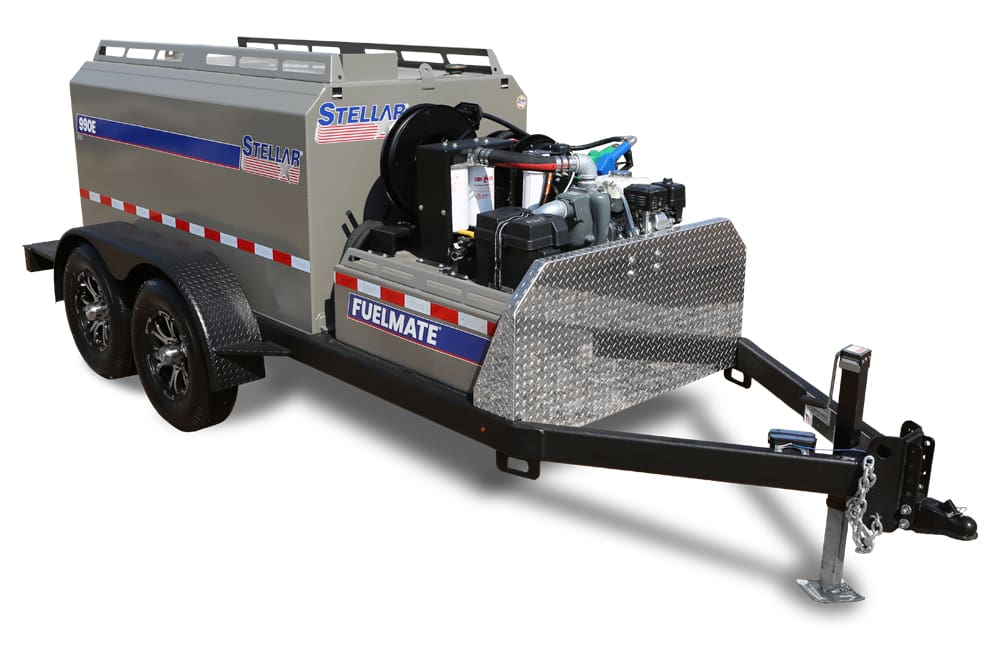

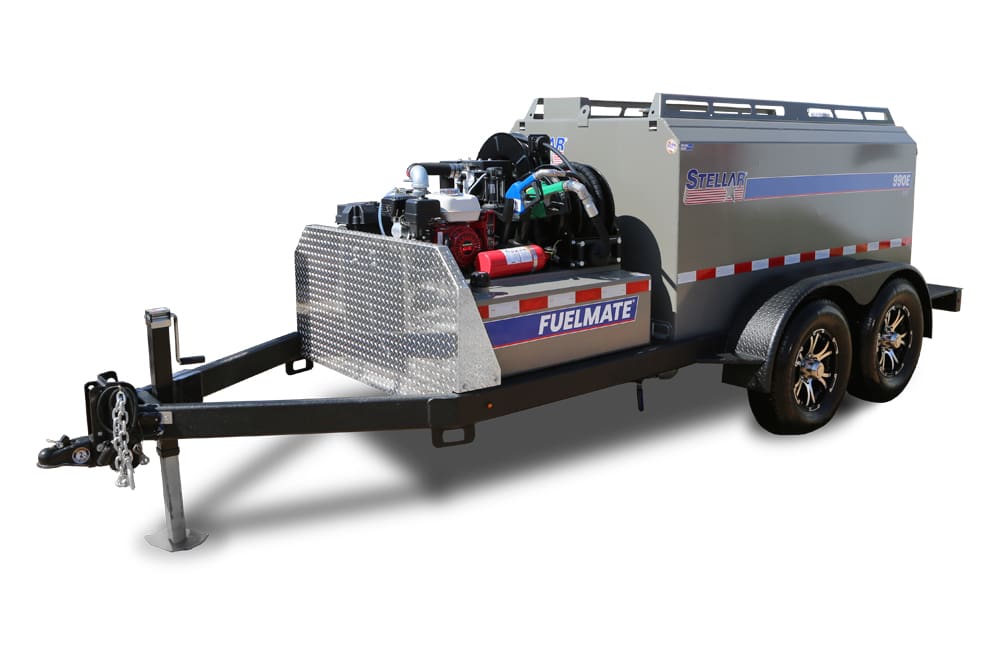

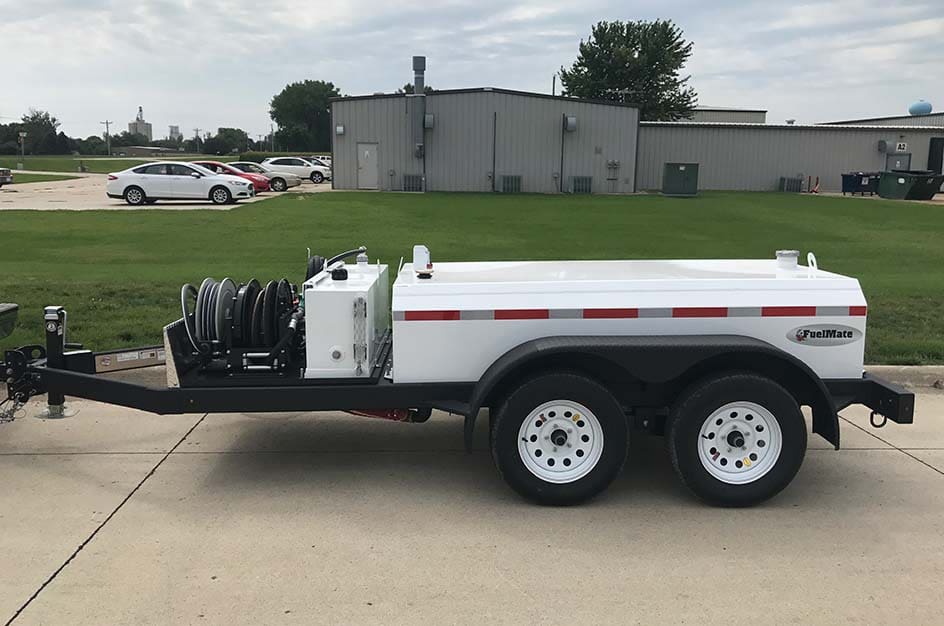

FuelMate® Economy Trailer

Towable, DOT-compliant trailers designed for onsite fuel delivery — high value for basic fueling needs.

Corner-braced tub baffles
Spring-mounted, vibration-damped tanks
Dual spring axles with electric brakes
LED lighting and DOT wiring

12V or gas pump options
Optional 100-gallon DEF tank
Air compressor & lighting kits
Adjustable hitch, rock guard fenders

Capacities: 500, 750, 990 gal diesel (+ optional 100 gal DEF)
Frame: 5″×2″ tubular steel
GVWR: 13,200 lbs
Dry weight: 2,890–3,610 lbs
Tires: 235/80R/16

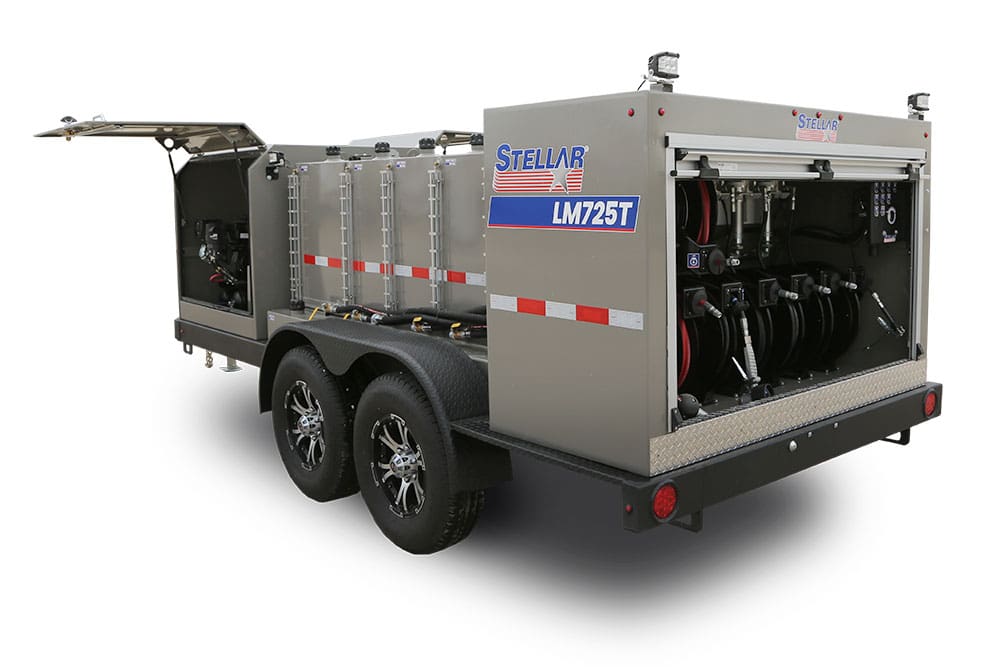

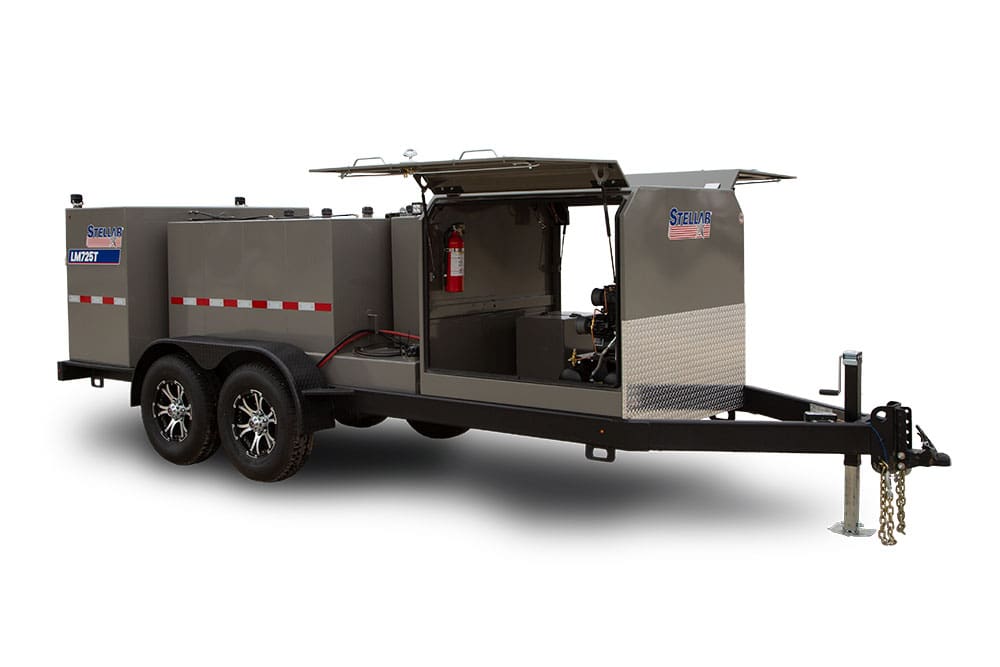

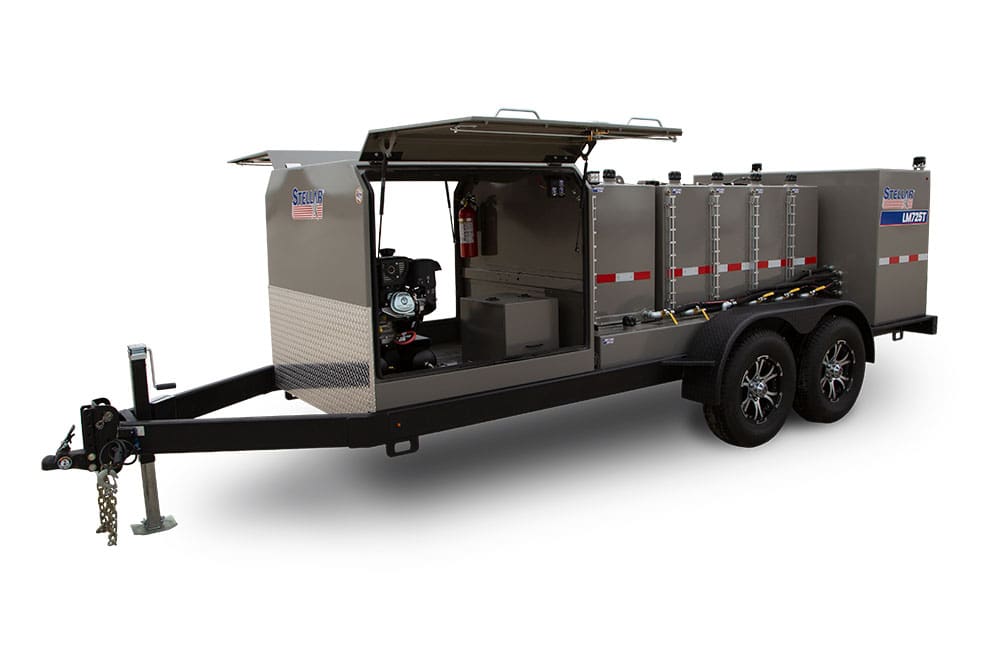

LubeMate® Open Trailer

Open-array lube trailers simplify site lubrication — easy access, DOT-compliant, tandem-axle towable.

Multiple fresh oil tanks with metering
Waste oil, antifreeze, and grease compartments
Pneumatic and grease pumps included
Optional Vanair power unit for additional power supply

Hose reels for oil, antifreeze, waste oil, grease, and air
Vanair power unit (14 hp + compressor)

Oil capacity: 3×100 gal new oil, 75 gal A/F, 250 gal waste, 120 lb grease (LM625T)

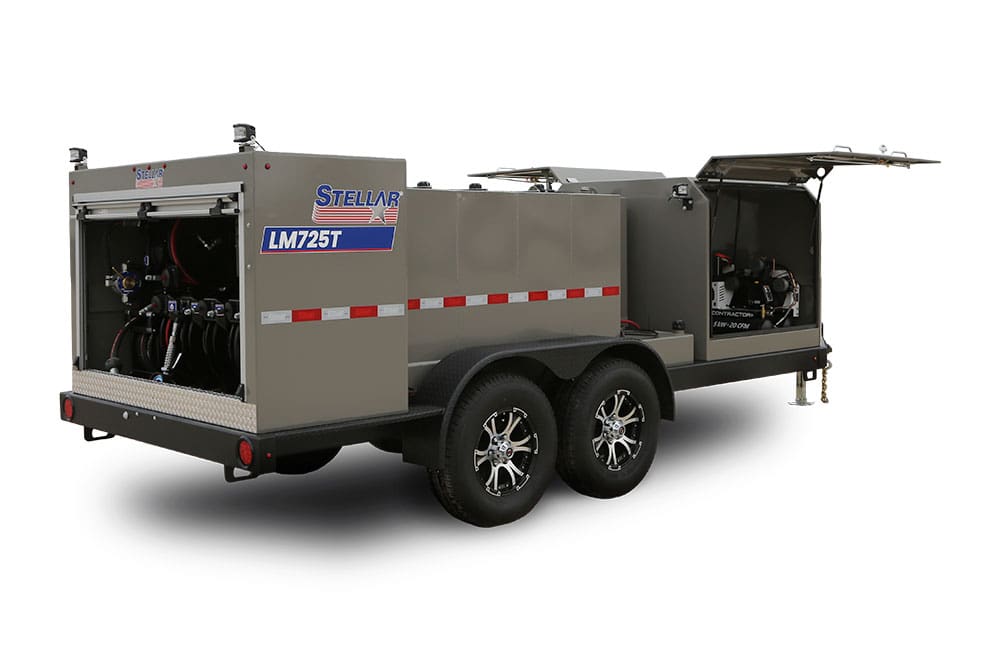

Additional: LM725T adds a fourth 100-gal tank
Chassis: Tandem-axle trailer
Power unit: Vanair unit, 5,000W, 20 CFM compressor
Hose lengths: 50’/25′ reels
