Mechanic Trucks

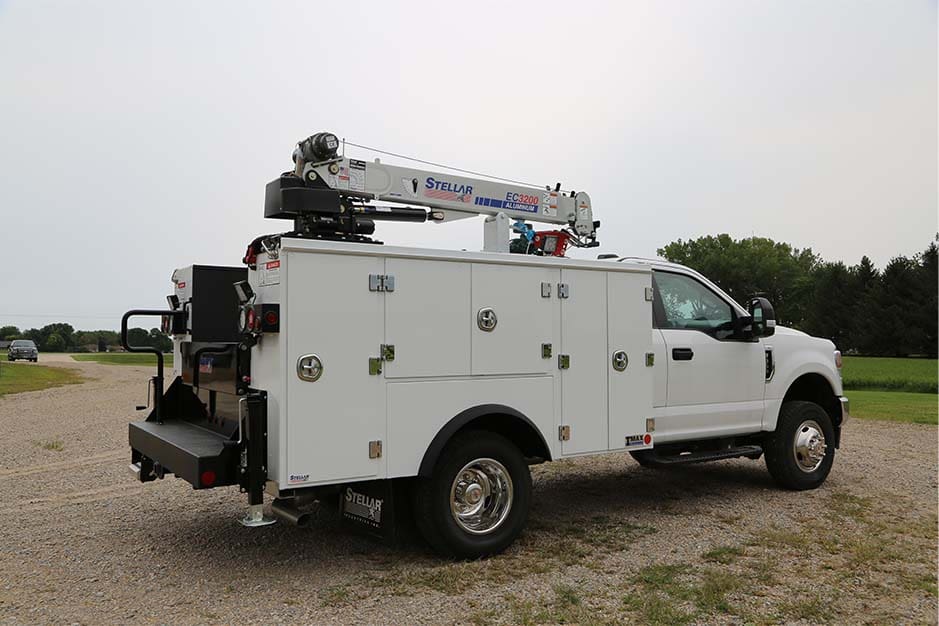

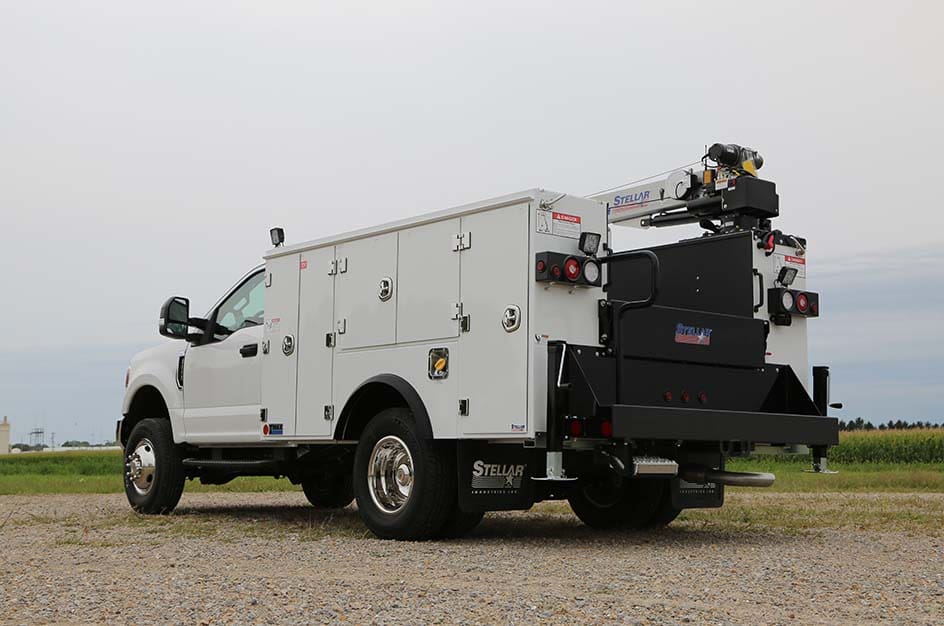

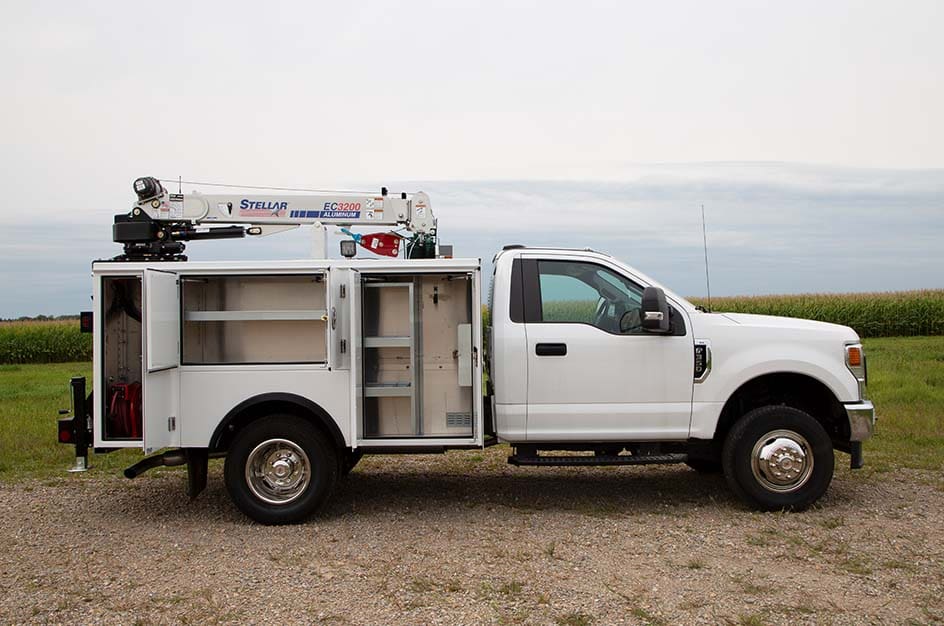

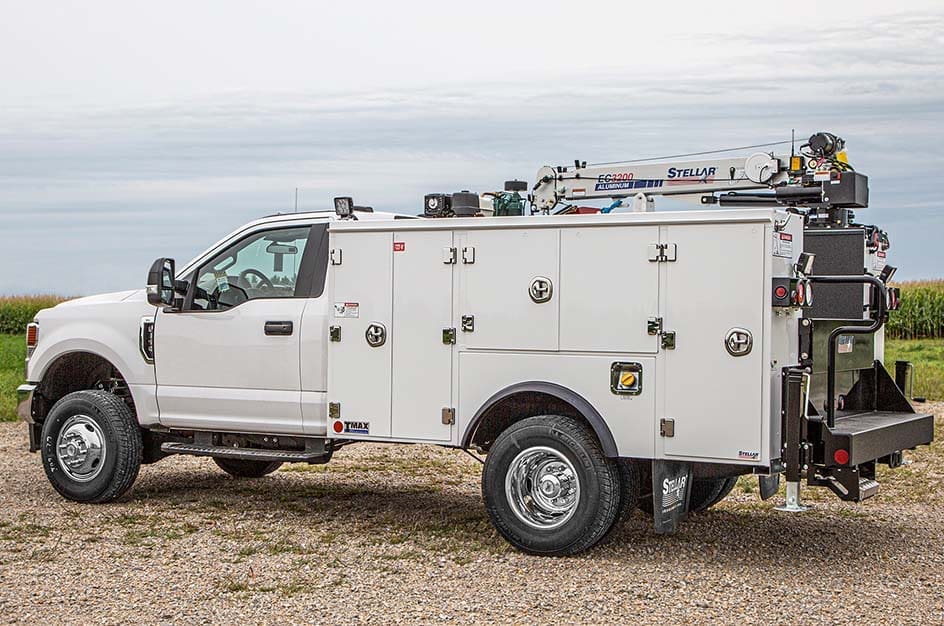

TMAX 16K

The Stellar® TMAX™ 16K is a lightweight aluminum mechanic service truck body built for superior durability, corrosion resistance, and maximum payload. Designed for light-duty cranes up to 4,000 lbs, it’s available in 9′ and 11′ lengths with 44″ or 52″ compartment heights. Ideal for field service, construction, and utility fleets, the TMAX 16K offers integrated mounting rails, reinforced compartments, and a fully undercoated, premium powder-coated finish for long-lasting performance.

Lightweight aluminum construction
Corrosion‑resistant
Increased payload capacity
Two available body lengths: 9 ft or 11 ft
Two height options: 44″ or 52″
Compatible with light‑duty cranes (up to 4,000 lb / 16,000 ft‑lb)
Supports crane models: EC3200, EC4000, 3315, 4421
High‑strength extruded aluminum top with dual integrated accessory mounting rails
Drill‑free accessory installation
Built‑in wire harness channels inside compartments
Roller‑type boom support for crane boom centering
Stainless‑steel billet‑style hinges with hidden fasteners
5/16″ hinge rod
Three‑point stainless‑steel compression latches
Double spring‑over‑center vertical door closures
Two‑part polyurethane enamel paint finish
Full undercoating for corrosion and debris protection
Compatible with both electric and hydraulic cranes

Service Cranes
Toolbox Systems
Air Compressors
Lubskids & Systems
Power Units

Body construction: Aluminum
Body lengths: 9 ft or 11 ft
Compartment heights: 44″ or 52″
Crane capacity: Up to 4,000 lbs
Crane rating: 16,000 ft-lb
Side pack depth: 22 in
Floor width: 50 in
Overall body width: 94 in
Compatible cranes: EC3200, EC4000, 3315, 4421
Mounting surface: Extruded aluminum top with integrated rails
Boom support: Roller-type
Latch system: Three-point stainless-steel compression latches
Hinges: Stainless-steel billet-style with hidden fasteners
Door closures: Double spring-over-center vertical
Finish: Two-part polyurethane enamel
Undercoating: Full body undercoating
Electrical: Built-in wire harness channels
Chassis GVWR compatibility: 14,000–22,000 lbs

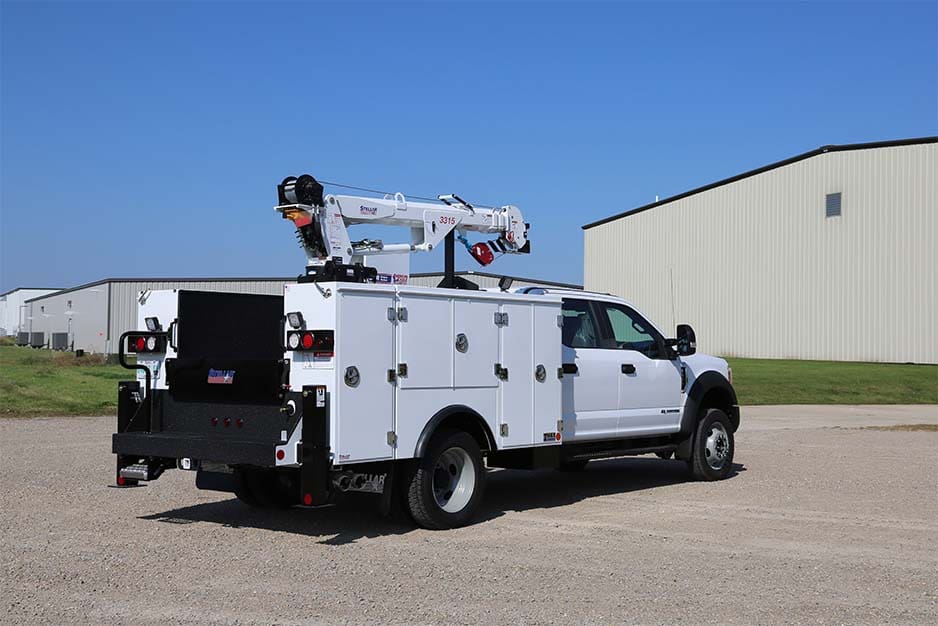

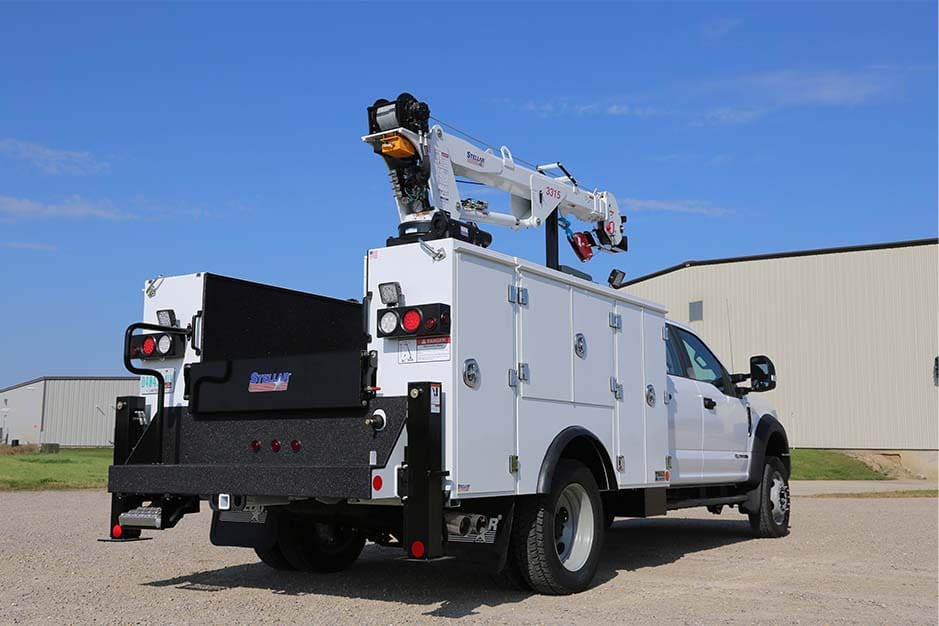

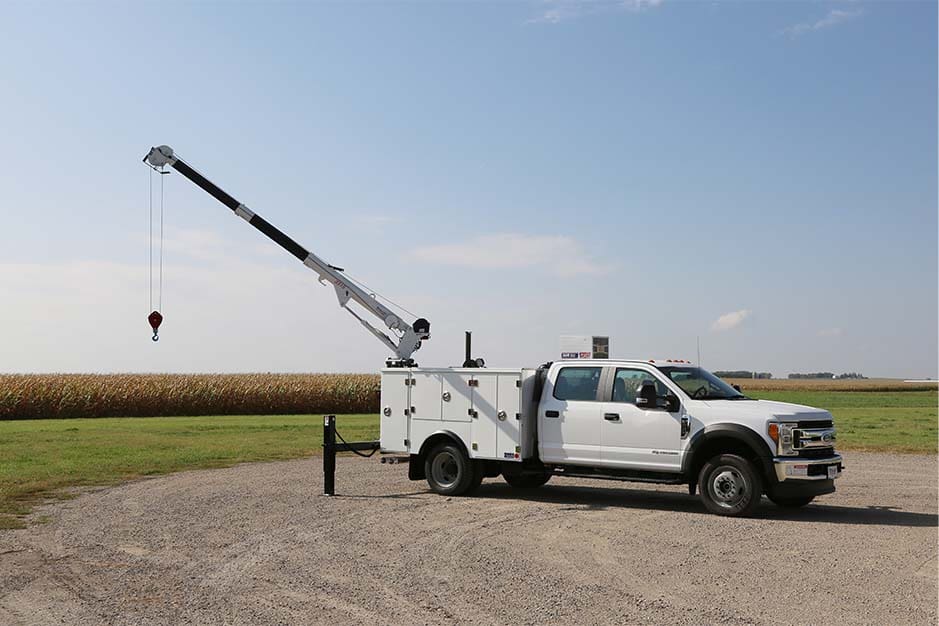

TMAX 30K

The Stellar® TMAX™ 30K is a lightweight yet robust mechanic service body that supports service cranes up to 30,000 ft‑lb (≈6,000 lb lift) with Torq‑Isolator mounting for durability and corrosion protection. Available in 9′–11′ lengths, steel or aluminum, undercoated and finished in two-part enamel. Ideal for municipal, rental, utility, and service fleets.

Accepts service cranes up to 30,000 ft‑lb (Stellar 5521)
Torq‑Isolator torsion-box crane support
Double‑panel aluminum doors with bonded channels
3‑point compression latches & stainless-steel hinges
Full undercoating
Tool drawer system (500 lb slide capacity)
Roller‑type boom support
Two‑part polyurethane finish

There are currently no options for this product.

Body materials: 14‑ga galvanneal steel with steel or aluminum options
Body lengths: 9′–11′
Height: 44″–60″
Compartment depth: 22″
Floor width: 50″
Overall width: 94″
GVWR compatibility: 10,500–19,500 lb
Crane compatibility: EC3200–6521 models w/ lifting from 3,200 to 6,000 lb depending on model
Undercoating: ≥3 mils petroleum-base

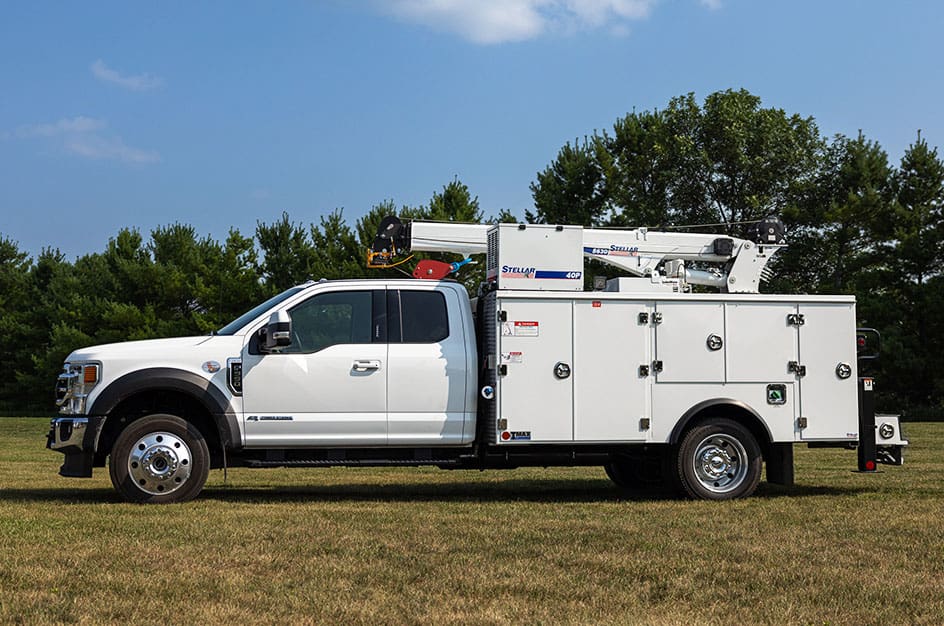

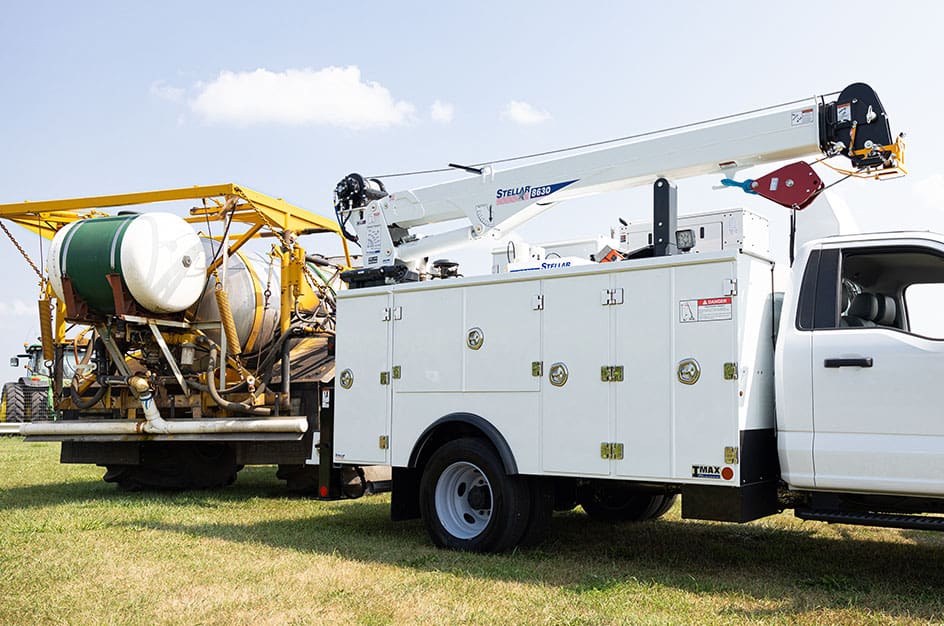

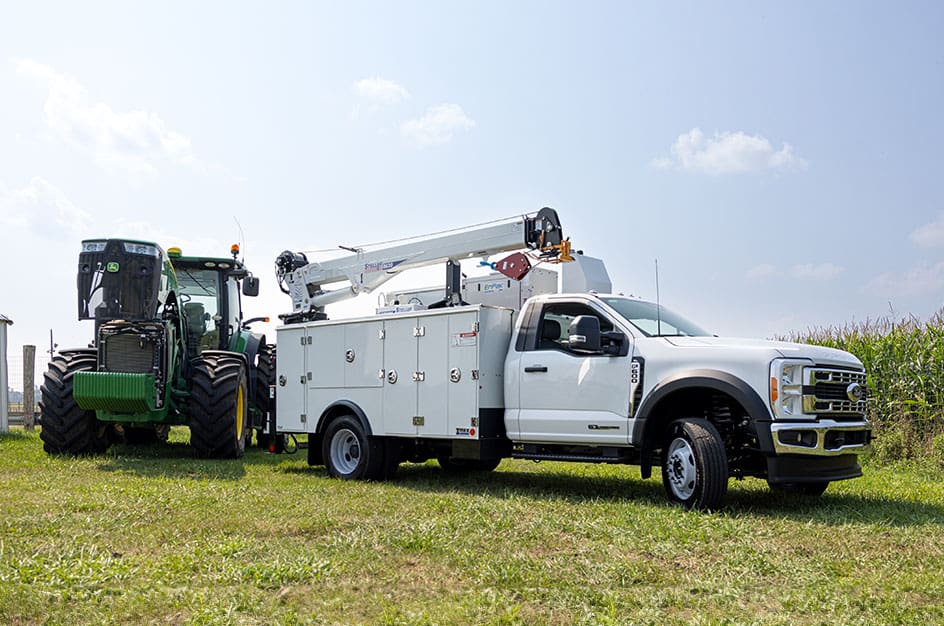

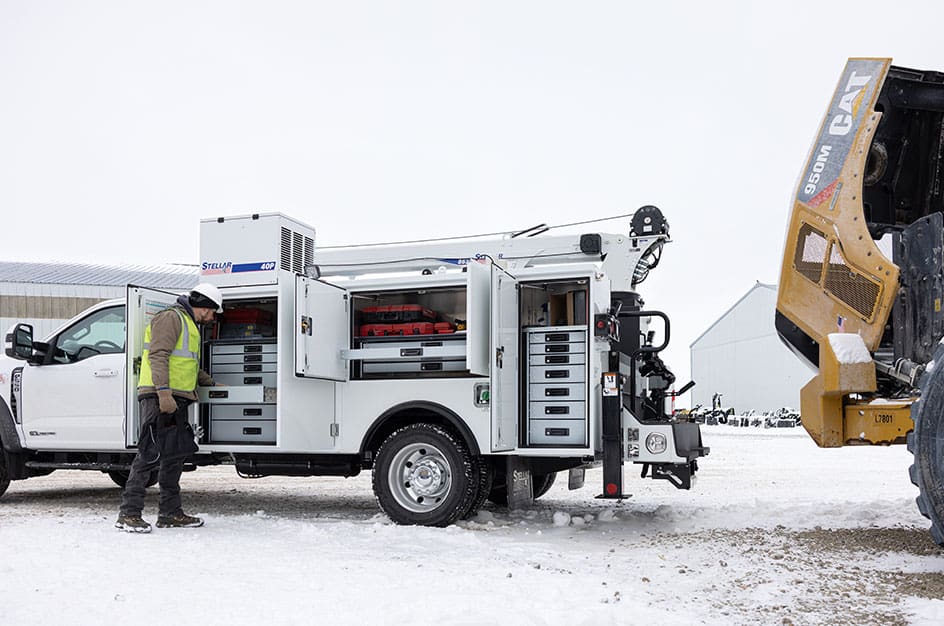

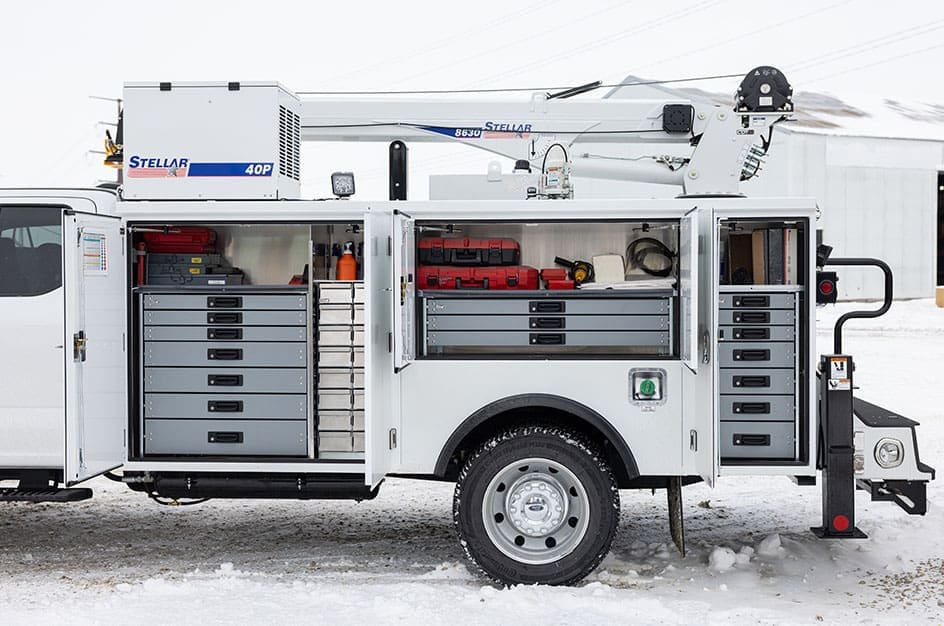

TMAX 1

The Stellar® TMAX™ 1 is an aluminum or steel mechanic service body supporting cranes up to 53,100 ft‑lb (≈8,600 lb lift) with Torq‑Isolator subframe isolation, extruded aluminum top rails, full undercoating, and roller‑boom support — ideal for municipal, utility, and field service fleets.

Supports cranes up to 53,100 ft‑lb (EC620/8630)
Torq‑Isolator crane subframe
Extruded aluminum top with drill‑free rails
Double‑panel aluminum doors, stainless hinges, 3‑point latches
Roller boom support
Exterior light box
250 lb divider shelves
Steel workbench bumper
Full ≥6.5 mils petroleum undercoating
Available in 9′, 11′, 13′ length
44–60″ heights

There are currently no options for this product.

Applicable chassis GVWR: 16,000–22,900 lb
Body lengths: 9′/11′/13′
Heights: 44″–60″
Floor width: 50″
Width: 94″
Compartment depth: 22″
Net weight (aluminum): ~2,718–3,330 lb
Compatible cranes: EC3200–8630 with CDT/CDTplus

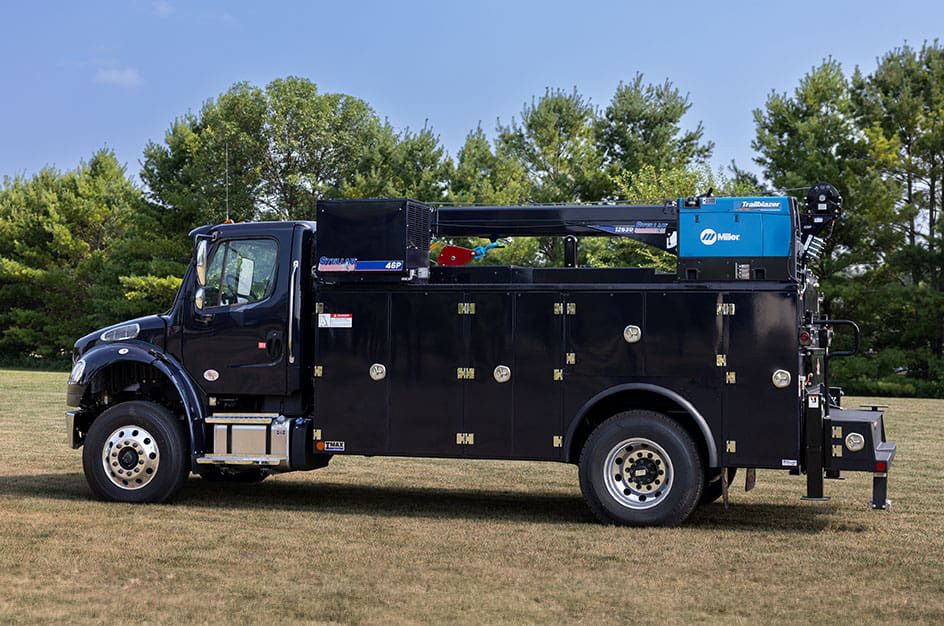

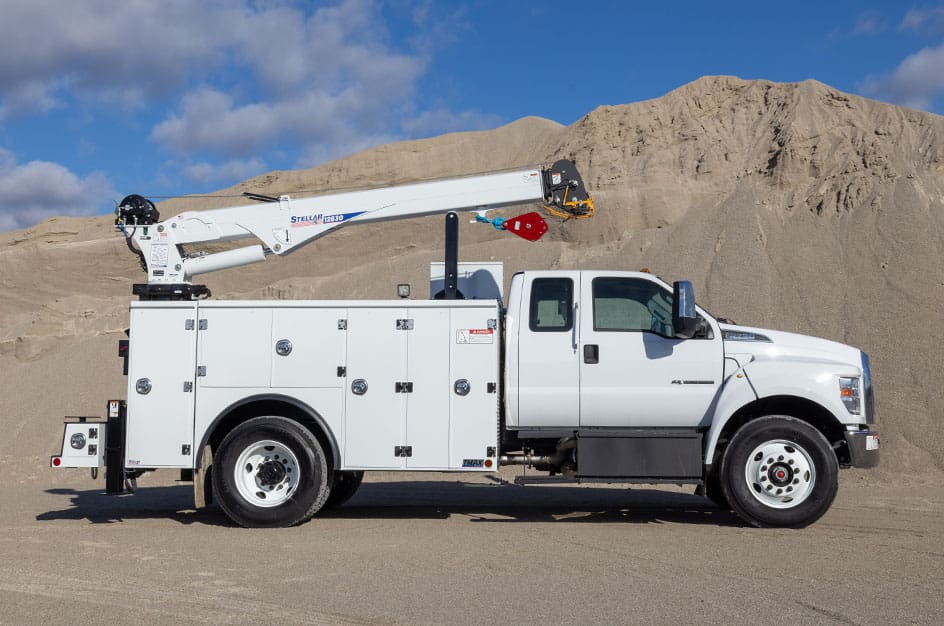

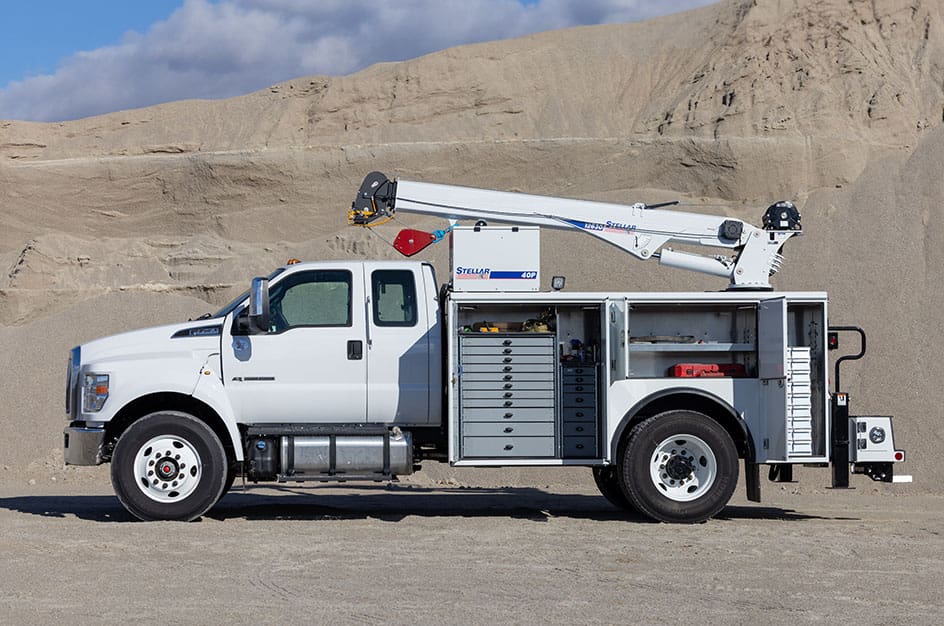

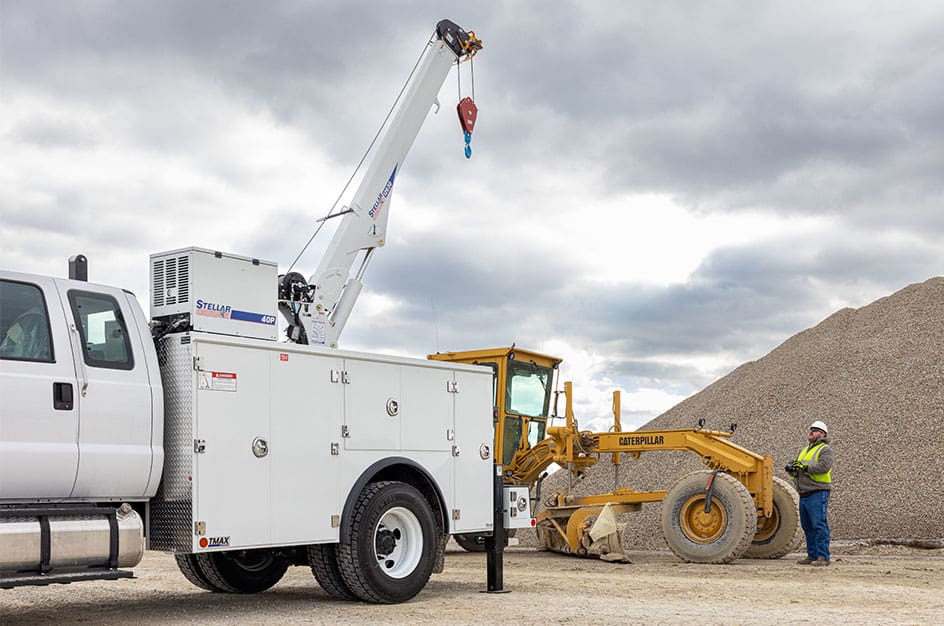

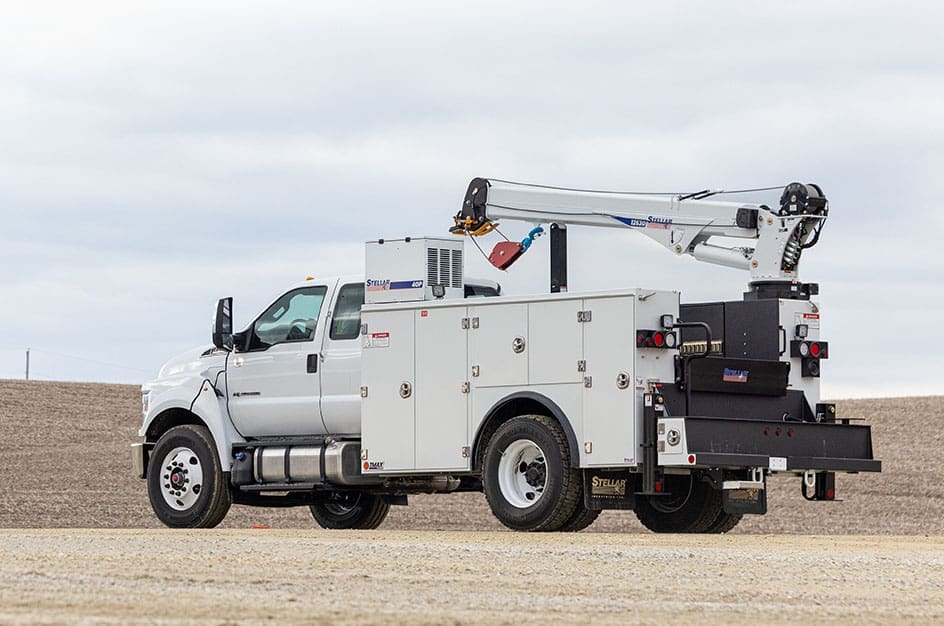

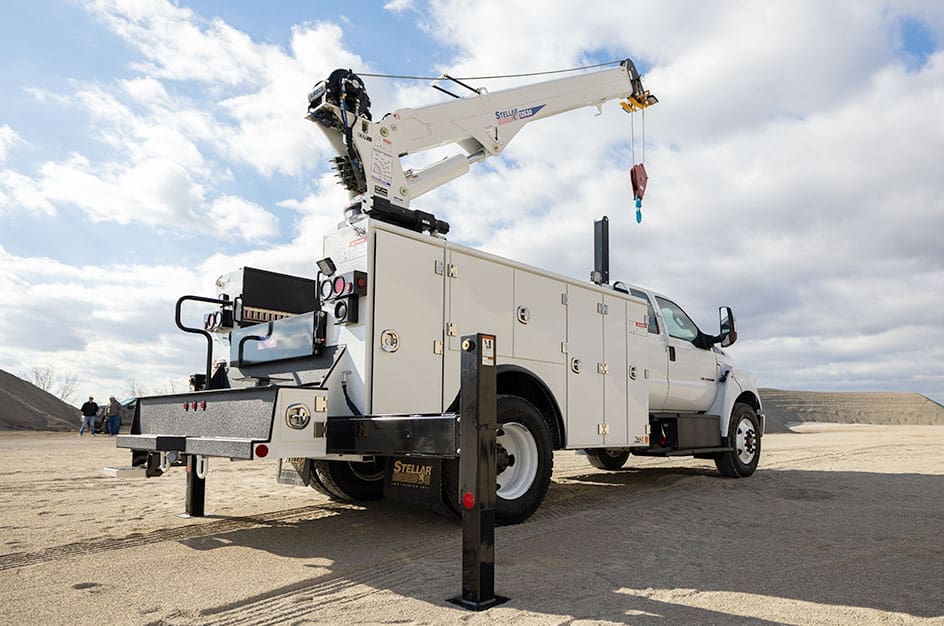

TMAX 2

The Stellar® TMAX™ 2 offers heavy-duty aluminum or steel service bodies with Torq‑Isolator crane support, extruded accessory rails, full undercoating, and built-in workbench bumper — designed for cranes up to 77,800 ft‑lb. Available in 11′ or 14′ lengths for mining, construction, and equipment-service fleets.

Supports cranes up to 77,800 ft‑lb
Torq‑Isolator subframe
Extruded aluminum top with drill-free rails
Aluminum sidepacks and doors
Roller-type boom support
Stainless hinges and latches
Workbench bumper with drawer
Full ≥6.5 mil undercoating
Master lock system
Exterior light box

There are currently no options for this product.

Body lengths: 11′ / 14′
Height: 60″
Width: 94″
Floor width: 50″
Depth: 22″
GVWR: 25,500–33,000 lb chassis
Net weight: Aluminum: 3,459–3,980 lb; Steel: 4,388–5,140 lb

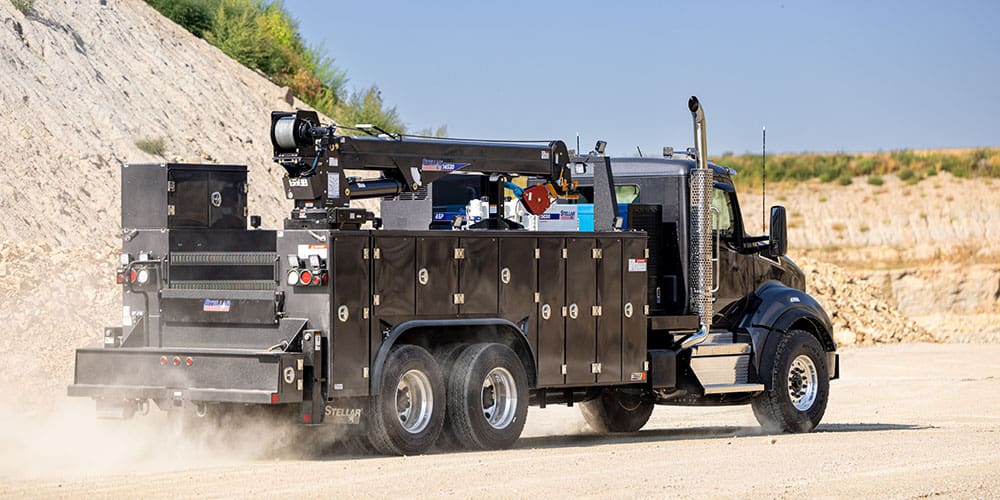

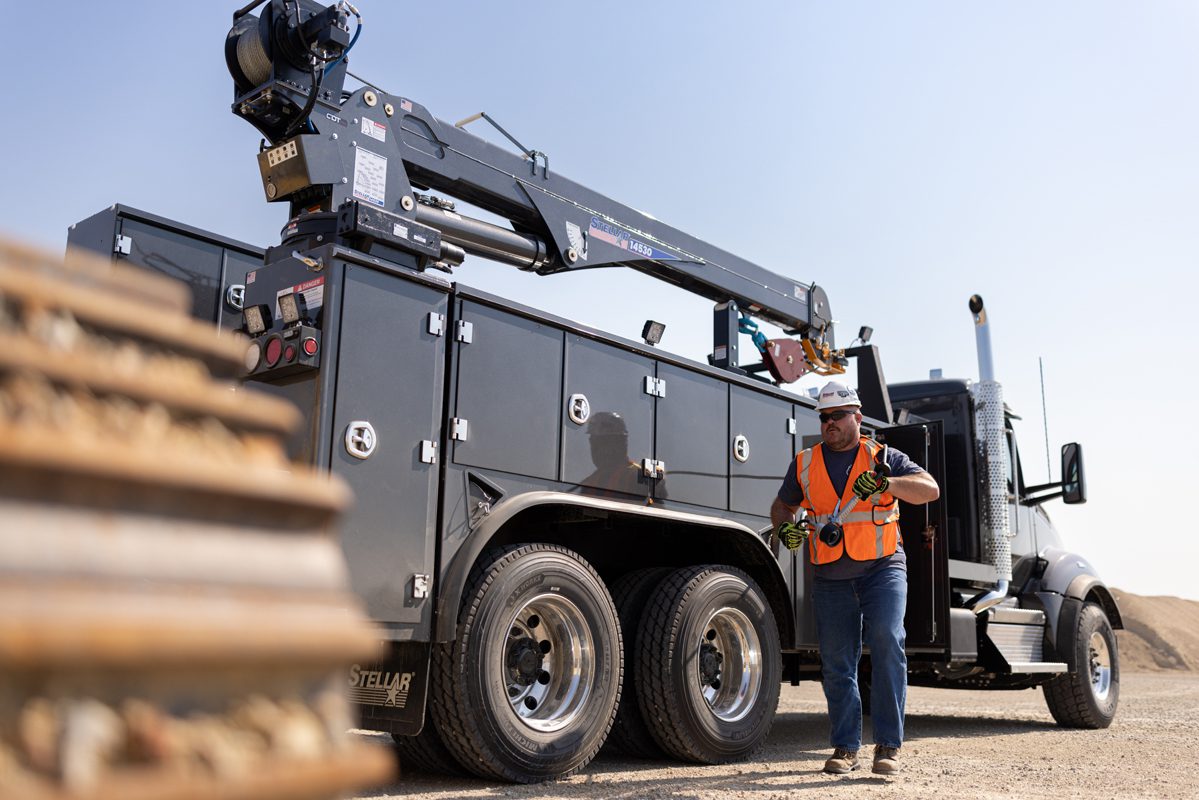

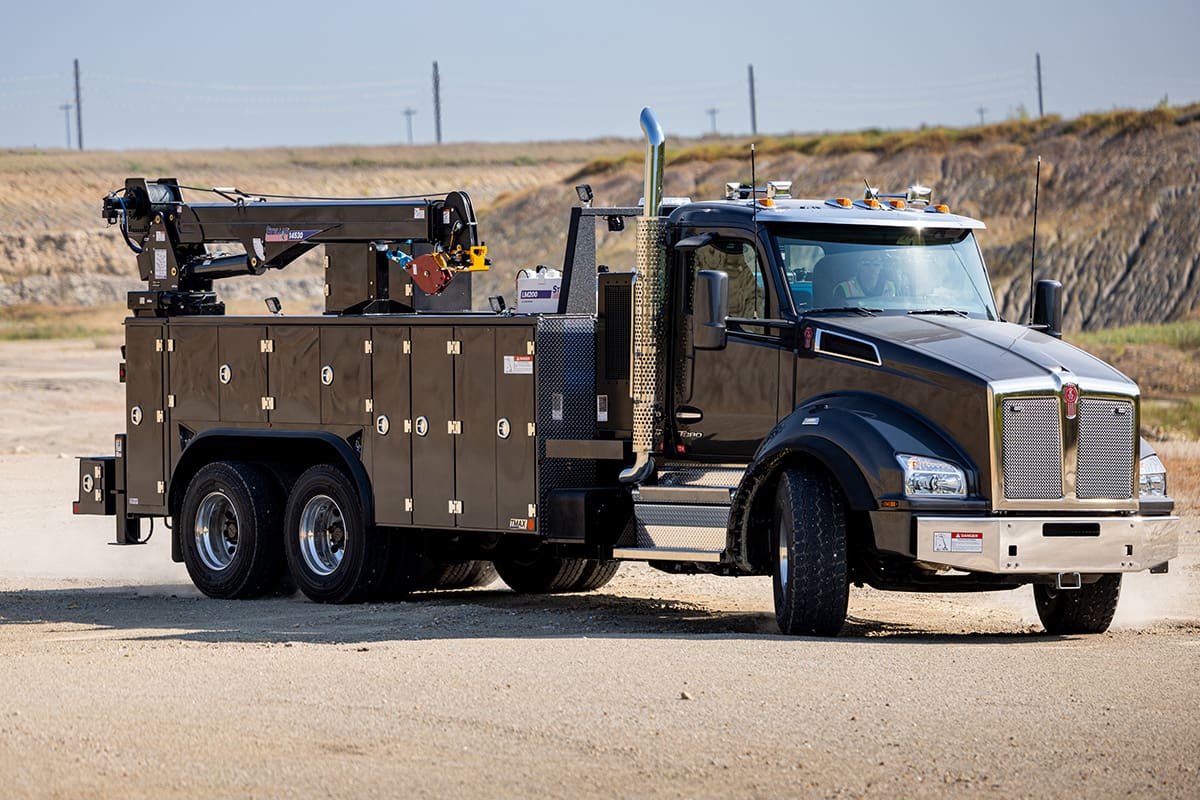

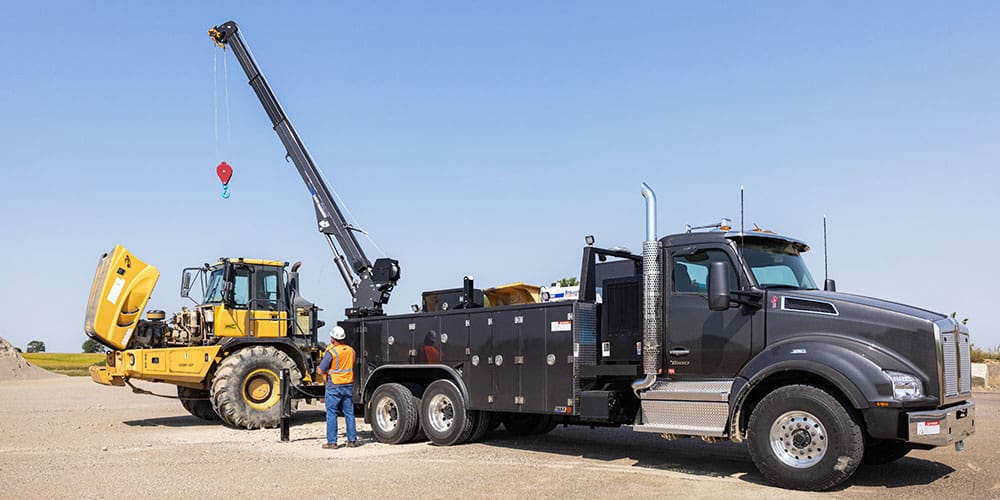

TMAX 3

The Stellar® TMAX™ 3 is a heavy‑duty service body for large‑scale fleets like mining, construction, and equipment dealers. Built with a Torq‑Isolator subframe and reinforced aluminum doors, it’s designed to support cranes up to 82,600 ft‑lb and handle the toughest jobsite stress.

Supports cranes up to 82,600 ft‑lb (e.g., Stellar 14530 in boost mode)
Dual-panel aluminum doors with bonded channels
Stainless steel handles and master lock system
Roller-type boom support
Exterior light box
Full ≥3 mil undercoating
Torq‑Isolator crane subframe
Workbench bumper with step and grab handles

There are currently no options for this product.

Body length: 14′–17.5′
Height: 60″
Floor width: 50″
Width: 96″
Net weight: ~6,750 lb
GVWR chassis: 33,000 lb+
Max crane reach: 30′
Capacity: 14,000 lb

Featured Brands

Ready to Roll Inventory - Mechanic Trucks

Price: Call

Stock # N3120

Body: Stellar TMax 1-11 Mechanics Body with 8630 Crane

Engine: Powerstroke V8 B20 4V OHV Diesel

Transmission: TorqShift Automatic Transmission

Class: Class 6 (GVW 19501 – 26000)

Price: Call

Miles: 100

Stock # N3114

Body: Stellar TMax 2-11 Mechanics Body with 12630 Crane

Engine: Paccar PX-7

Transmission: Allison 2500 RDS Automatic Transmission

Class: Class 6 (GVW 19501 – 26000)

Price: Call

Miles: 100

Stock # N3094

Body: Stellar TMax 1-11 Mechanics Body with 8630 Crane

Engine: Ford Power Stroke 6.7L V8 B20 4V OHV Diesel

Transmission: TorqShift Automatic

Class: Class 5 (GVW 16001 – 19500)

Price: Call

Stock # N3137

Body: Stellar TMax 1-11 Mechanics Body with 8630 Crane

Engine: Ford Power Stroke 6.7L V8 B20 4V OHV Diesel

Transmission: TorqShift Automatic

Class: Class 6 (GVW 19501 – 26000)

Price: Call

Stock # N3136

Body: Stellar TMax 1-11 Mechanics Body with 8630 Crane

Engine: Ford Power Stroke 6.7L V8 B20 4V OHV Diesel

Transmission: TorqShift Automatic

Class: Class 6 (GVW 19501 – 26000)

Customize Your Mechanic Trucks

Customize your mechanic truck with the service body, crane package, storage layout, compressor, welder, generator, lighting package, and hydraulic accessories that best fit your operation. Matthews Motors can configure work-ready mechanic trucks for fleet maintenance, utility service, construction equipment support, municipalities, industrial operations, and heavy equipment repair.
